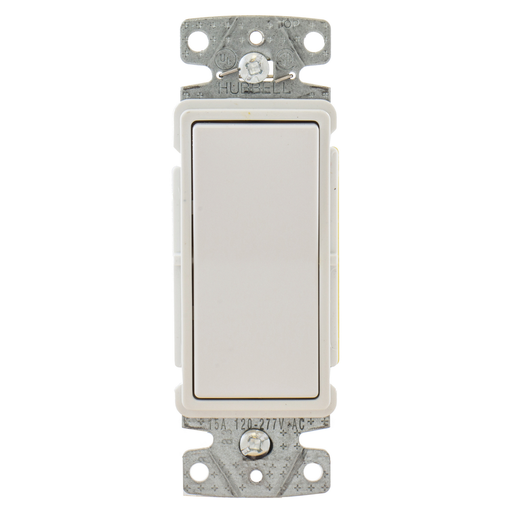

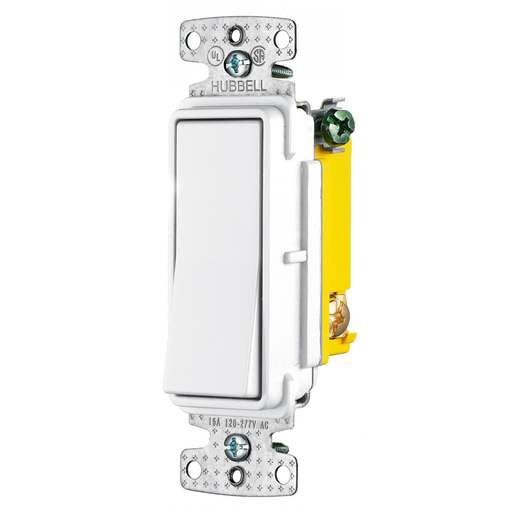

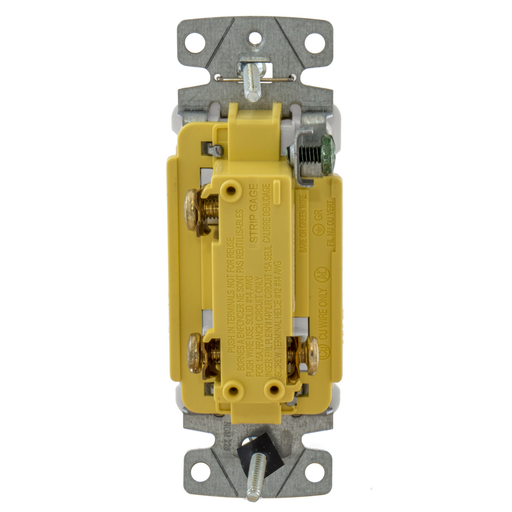

Hubbell RSD315W 15 Amp 120/277 VAC 3-Way White Rocker Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # RSD315W | Codale Part # 3173298
$3.51/ea
ea
Log in or register to view your price, purchase history, and more!
2,852 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
TradeSelect, Switches and Lighting Controls, Decorator Switch, Residential Grade, Rocker Switch, General Purpose AC, Three Way, 15A 120/277V AC, Push Back and Side Wired, White

Technical Information

Action
Positive Snap
Actuator
Rocker
Amperage
15 Amp
Applications
For Residential Wiring Devices
Contact Configuration
2 Position
Contact Rating
Per UL 20
Enclosure
None
Indicator
None
Material
Composite
Mounting Type
Flush, Screw
Number of Poles
1 Pole
Operating Cycles
30000
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Size
Standard Sized
Standard
CSA,E3896,UL
Tc Connection
Push Wire and Terminal Screws
Temperature Rating
60 degrees C Maximum Continuous, -20 degrees C Minimum Continuous without Impact
Type
General Purpose, Standard, 3 Way, 2 Position
Voltage
120/277 VAC
Wattage
4155 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
883778101250
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
Product UPC
88377810125
Weight
0.1100 lb

Dimensions

Height
1-1/2 Inch
Length
4.4 Inch
Width
1.470 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth, quiet rocker
  • Self-grounding feature is standard
  • Ultrasonically welded cover and base
