Panduit AST10-5-C100 Aerial Support Tie, 5.6"L (142mm), Weather Resistant Polypropylene, Black

Manufacturer: PANDUIT | Catalog # AST10-5-C100 | Codale Part # 3215787
$2,404.18/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

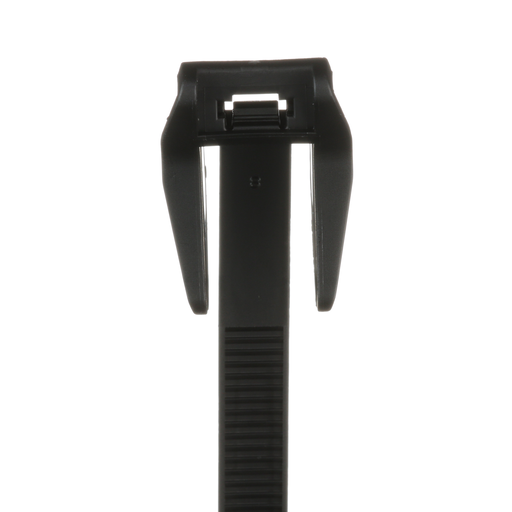

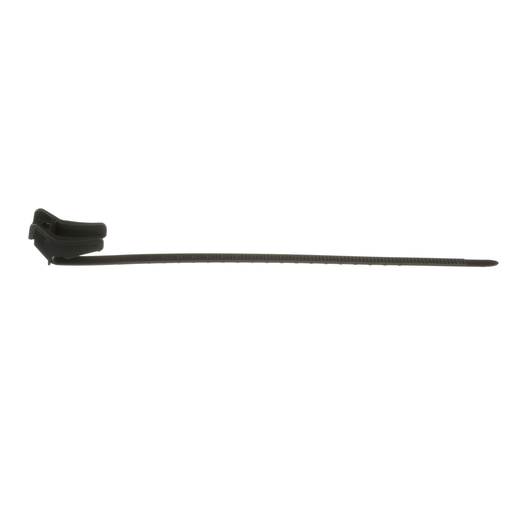

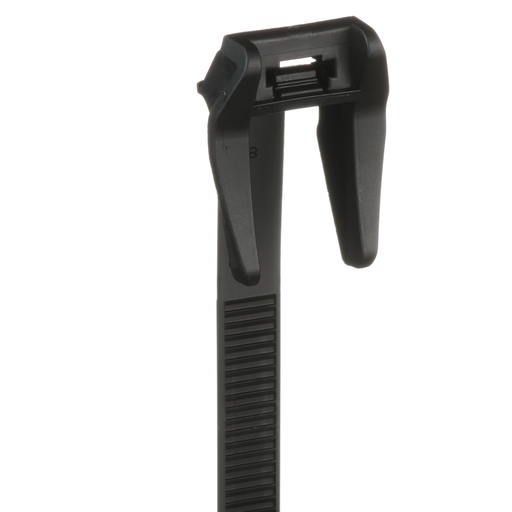

The aerial support tie in black with integral 1/2" (12.7mm) spacer for support strand applications is made of weather-resistant polypropylene. It is 5.6" long and 0.45" wide (142 x 11.4 mm), features a releasable locking style and can support a maximum bundle diameter of 1.0" (25.4 mm). It is designed for outdoor environments and comes in packages of 100.

Technical Information

Applications
(1) To Attach Coax or Telephone Cable to The 1/4 Inch (6.4Mm) or 5/16 Inch (7.9Mm) Support Strand to form The Expansion Loop and Keep Equipment and Cables Clear of Pole Hardware
Bundle Diameter
1 In.
Material
Polypropylene
Max Operating Temperature
115 degrees C
Min Operating Temperature
-60 degrees C
Mounting Type
Aerial Support
Tensile Strength
334 lb
Type
Aerial Support

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.

General Product Info

12-Digit UPC
074983601028
Color
Black
Environment
Outdoor
Product UPC
07498360102
UNSPSC
39121703
Weight
0.0017 lb

Dimensions

Length
5.6 Inch
Overall Length
5.6 in
Width
1.16 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: RoHS Compliant
