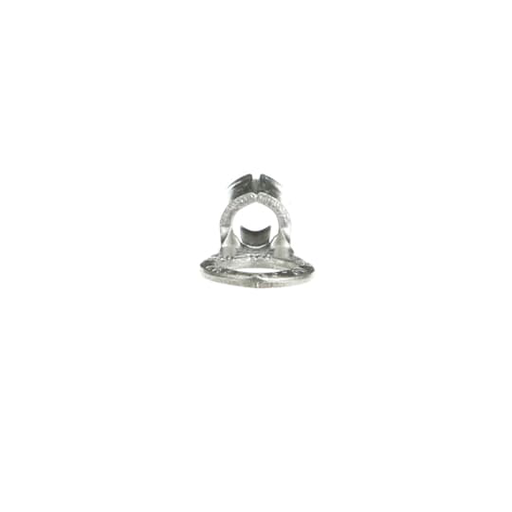

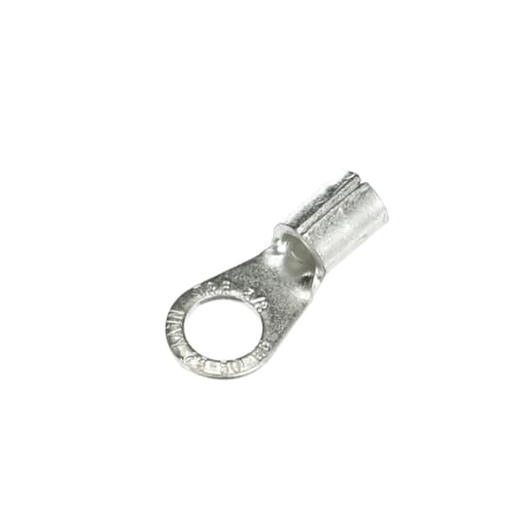

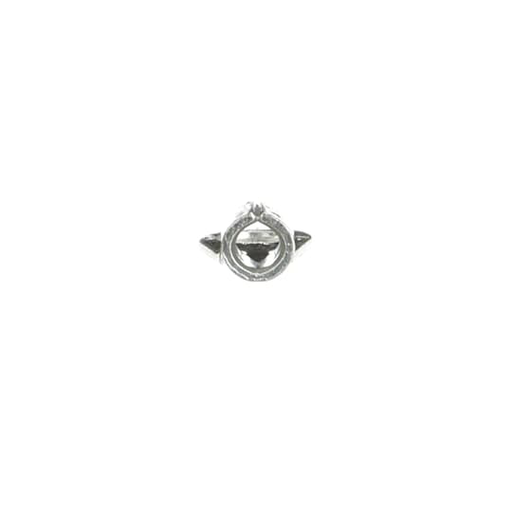

Product image for Thomas & Betts E73 Non-Insulated Large Ring Terminal - #6, 3/8"bolt (200/Pkg)
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Thomas & Betts E73 Non-Insulated Large Ring Terminal - #6, 3/8"bolt (200/Pkg)

Manufacturer: ABB Thomas & Betts | Catalog # E73 | Codale Part # 3216629
$193.95/c (100 ea)
ea
Order in multiples of 200 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Non-Insulated Large Brazed Seam Ring Terminal, Length 1.32 Inches, Width .60 Inches, Bolt Hole 3/8 Inch, Wire Range #6 AWG, Copper, Tin Plated, 200 Pack

Technical Information

Barrel Type
Brazed Seam
Conductor Size
6 AWG
Insulation Type
Non-Insulated - Brazed Seam
Material
Copper
Standard
UL E9809
Stud Size
3/8 in
Temperature Rating
150 degrees C
Type
Short Sleeve
Voltage
600 Volt
Wire Size
6 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210811932
Color
Metallic
Finish
Electro Tin Plated
Product UPC
78621081193
Weight
0.0100 lb
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
Notes
  • Not available on Mylar Tape.
