Hubbell HBL2826 Locking Flanged-Receptacle, 30A 3PH 277/480V, L22-30R

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2826 | Codale Part # 3217406
$392.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire Grounding, L23-30R, Screw Terminal, Black

Technical Information

Amperage
30 Amp
Applications
Insulgrip
Conductor Size
16-8 AWG
Connection Type
Back Wired
Current
30 Amp
Dielectric Strength
2000 V
Grade
Industrial
Grounding
Grounding
Horsepower
10 hp
Material
Nylon
Mounting Type
Screw

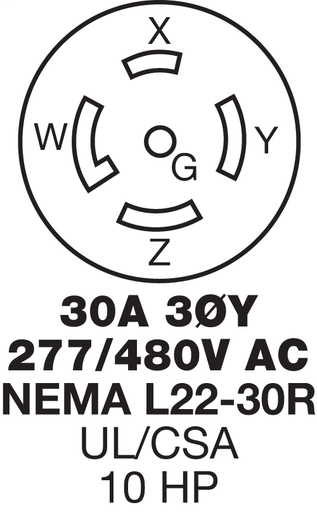

NEMA
L22-30R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Temperature Rating
-40 to 75 degrees C
Type
Heavy-Duty
Voltage
277/480 Volt
Wattage
14400 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585039725
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Plated
Product UPC
78358503972
Weight
0.4 lb

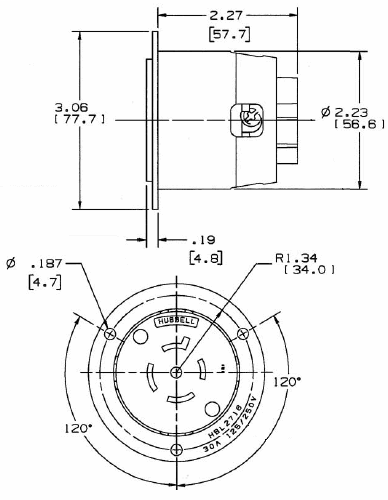

Dimensions

Height
2.27 Inch
Length
3.06 Inch
Width
3.06 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard
