Product image for Hubbell 1221AL Hubbell-PRO Single Pole Toggle Switch, 20A 120/277V, Almond
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell 1221AL Hubbell-PRO Single Pole Toggle Switch, 20A 120/277V, Almond

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 1221AL | Codale Part # 3219810
$7.58/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Almond

Technical Information

Actuator
Toggle
Amperage
20 Amp
Applications
Back and Side Wired
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Grade
Industrial
Material
Thermoplastic
Number of Poles
1-1 Pole
Operating Cycles
50k
Operating Temperature
-40 degrees C

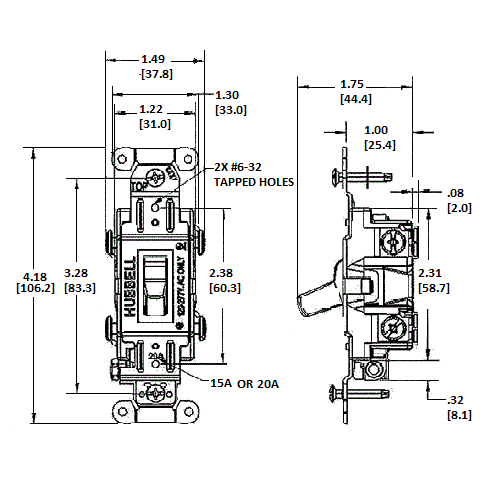

Size
4.18 in x 1.49 in x 1.83 in
Standard
UL
Style
Single Pole
Switch Type
Single Pole
Tc Connection
Back and Side Wired
Type
Toggle
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585109992
Color
Almond
Product Series
Heavy Duty
Product UPC
78358510999
Weight
0.15 lb

Dimensions

Height
1.83 Inch
Length
4.18 Inch
Width
1.49 in

Certifications and Compliance

Country of Origin
China
Features
  • Steel, zinc plated bridge is corrosion resistant
  • Color Coded by Amperage makes inspection easy even when installed
  • Strip gauge for accurate wiring
