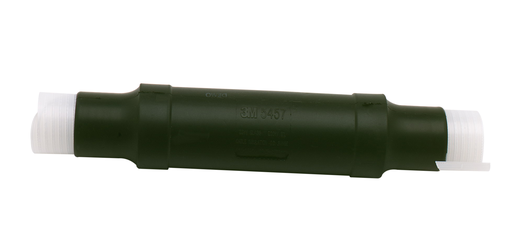

Product image for 3M 5775A-MT QS-III 3 Conductor Splice Kit
Image thumbnail 0
Image thumbnail 1
Email

3M 5775A-MT QS-III 3 Conductor Splice Kit

Manufacturer: 3M | Catalog # 7000031680 | Codale Part # 3220452
$4,899.84/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page MDM Safety Data Sheet
3M™ Cold Shrink QS-III 3/C Armoured or Non-Armoured Cable Splice Kits 5775A-MT, 5776A-MT and 5777A-MT Series are designed for splicing 3-conductor, Armoured and non-Armoured, shielded power cables. The kits are rated for use on 5/8 kV cables with conductor sizes from 3/0 AWG-1000 kcmil (95-500 mm.) or 15 kV cables with conductor sizes from 2 AWG-750 kcmil (35-325 mm.).

Technical Information

Applications
Cable Connection
Cable Type
Tape Shield
Conductor Size
2-4/0 AWG
Number of Conductors
3
Splice Type
Cold Shrink
Type
Inline
Voltage
15 kV

Manufacturer Information

Brand
Scotchlok

General Product Info

12-Digit UPC
051128534939
Color
Black
Product Series
5775A-MT
Product Type
Splice
Product UPC
05112853493

Certifications and Compliance

Country of Origin
USA
Features
  • Splices shielded cables
  • Silicon rubber-splice body provides good high- or low-temperature performance and Armorcast™ jacket offers mechanical protection
  • Suitable for use with 10000 and 20000 Series connectors or other UL Listed inline compression connectors
  • Solderless ground braid offers constant force spring connection
  • Rated for 5/8 to 15 kV applications
