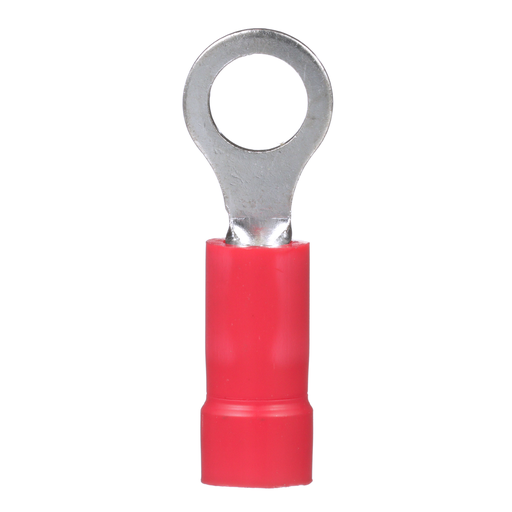

Panduit PV18-10R-CY 22-18 AWG Vinyl Insulated Ring Terminal

Manufacturer: PANDUIT | Catalog # PV18-10R-CY | Codale Part # 3220760
$151.22/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The PV18-10R-CY Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.39 in
Barrel Type
Funnel
Color Coding
Red
Conductor Size
22-18 AWG
Enclosure
Ring shape
Insulation Material
PVC
Material
Copper
Max Operating Temperature
105 degrees C
Size
#10
Stud Size
#5, #10
Tc Connection
Funnel Entry
Temperature Rating
221 degrees F
Tongue Thickness
0.03 in
Tongue Width
0.31 in
Type
Loose-Piece
Voltage
600 Volt
Wire Size
18 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983688500
Color
Red
Finish
Tin Plated
Product UPC
07498368850
Weight
0.2500 lb

Dimensions

Overall Length
0.94 in
Width
7.9 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
Prop 65
  • No
