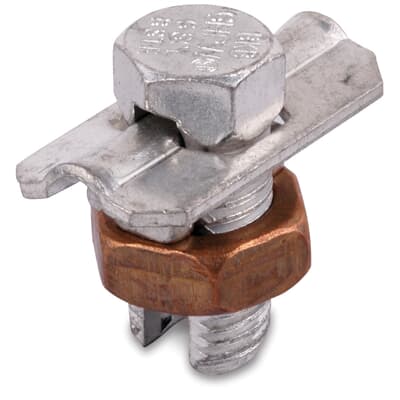

Blackburn 40HPW Copper-Alloy Split Bolt Connector with Spacer and Washer, 4/0 Str - 4 Sol

Manufacturer: ABB Thomas & Betts | Catalog # 40HPW | Codale Part # 322112
$8,207.29/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Type HPW Plated Split-Bolt Connector with Spacer and Washer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 4/0 Str.-4 Sol.

Technical Information

Applications
For Splicing, Tapping or Terminating Conductors in Power and Grounding Electrical Connection
Conductor Size
4-4/0 AWG
Material
Copper
Standard
UL E9809
Type
Split-Bolt

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786200399
Color
Metallic
Finish
Electro Tin Plated
Product UPC
78378620039
Weight
0.5000 lb
Features
  • Contoured spacer and bell mouth washer distribute pressure over large area of conductor. Large countoured spacer provides wide separation between copper and aluminum conductors.
  • Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance. Spacer and washer of tin plated electrolytic copper.
Application
  • Splicing, tapping or terminating conductors in power and grounding electrical connection.
Notes
  • Blackburn Contax recommended when used on aluminum conductor.
