Hubbell HBL1386L 20 Amp 120/277 VAC DPDT Locking Toggle Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL1386L | Codale Part # 3224677
$191.97/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Locking Switches, General Purpose AC, Maintained Double Pole Double Throw Center Off , 20A 120/277V AC, Terminal Screws Black Key Guide

Technical Information

Action
DPDT
Actuator
Non-Cylindrical Double Ended Key
Amperage
20 Amp
Applications
Double Pole Double Throw, Three Position Center Off
Conductor Size
14-10 AWG
Contact Configuration
3-Position
Contact Rating
Full Rated
Current
20 Amp
Enclosure
None
Grade
Industrial
Indicator
Dot Indicates On
Lock Type
Non-Cylindrical
Material
Composite
Number of Poles
2 Pole
Operating Temperature
-40 degrees C
Size
Standard Product Size
Standard
UL
Style
Double Pole Double Throw
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 C
Type
3-Position, Extra Heavy-Duty, General-Purpose, Inductive, Resistive
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585432687
Color
Black
Product Series
Extra Heavy Duty
Product UPC
78358543268
Weight
0.25 lb

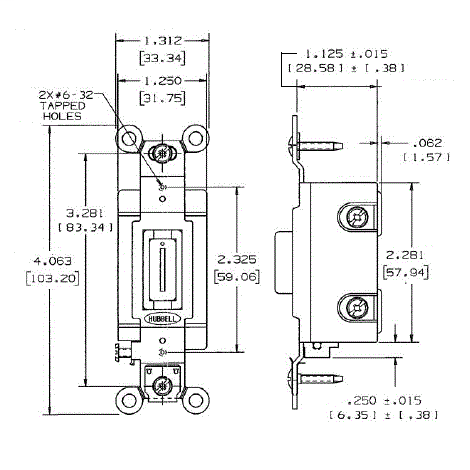

Dimensions

Height
1.19 Inch
Length
4.06 Inch
Width
1.31 in

Certifications and Compliance

Country of Origin
USA
Features
  • Large brass binding head screws with deep slots
  • Lock circuits On or Off
  • Strip gauge for accurate wiring
  • Maintained Contact
