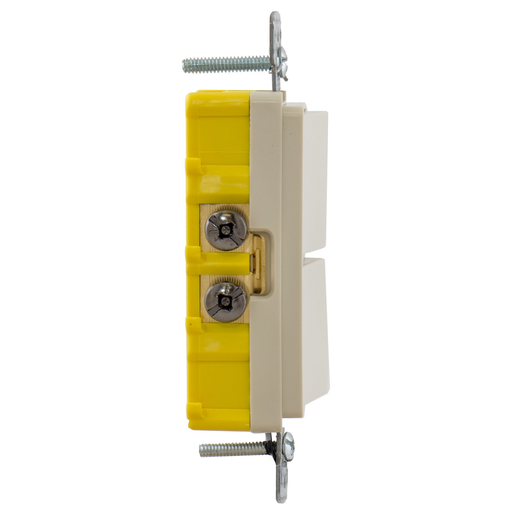

Product image for Hubbell RCD101LACOMBO, 2) 15A SP ROCKER, LA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

Hubbell RCD101LACOMBO, 2) 15A SP ROCKER, LA

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # RCD101LA | Codale Part # 3227985
$15.25/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 2) Single Pole Rockers, 15A 120V AC, Side Wired, Light Almond

Technical Information

Action
Snap Switch
Actuator
Rocker
Amperage
15 Amp
Applications
Residential
Contact Configuration
Two Position
Contact Rating
15 A
Current
15 Amp
Number of Poles
1 Pole
Number of Positions
2
Operating Cycles
30000
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Power Rating
4155 W
Size
Standard Size
Standard
CSA,E3896,UL
Tc Connection
Side Wired
Temperature Rating
-20 degrees C Minimum Without Impact, 60 degrees C Maximum Continuous
Type
2 Rocker, Standard
Voltage
120/277 Volt
Wattage
4155 Watt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Trade-Select™

General Product Info

12-Digit UPC
883778119118
Color
Light Almond
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
88377811911
Weight
0.1500 lb

Dimensions

Height
1.2 Inch
Length
4-1/2 Inch
Width
2.970 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth, quiet rocker
  • Low profile, less than 1 inch deep
  • Self-grounding feature is standard
  • Standard Product
