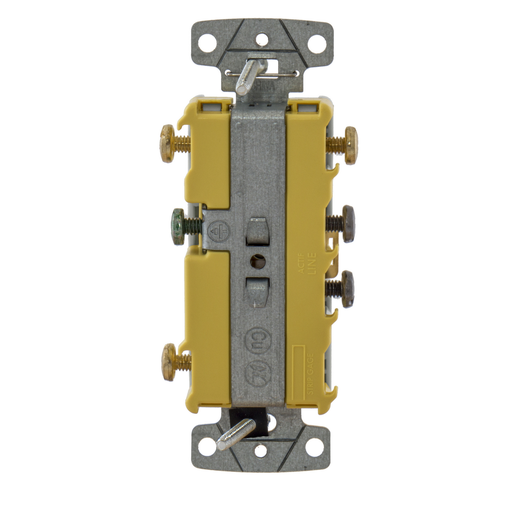

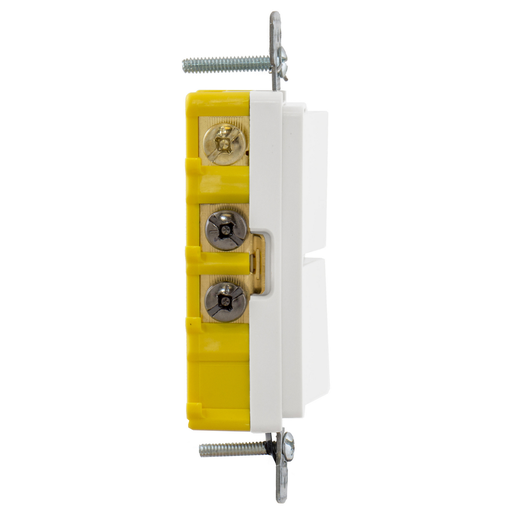

Product image for Hubbell RCD103W 15 Amp 120 to 277 VAC 3-Way 1-Pole White Quiet Rocker Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Email

Hubbell RCD103W 15 Amp 120 to 277 VAC 3-Way 1-Pole White Quiet Rocker Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # RCD103W | Codale Part # 3228015
$17.49/ea
ea
Log in or register to view your price, purchase history, and more!
23 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 1) Single Pole Rocker, 1) Three Way Rocker, 15A 120V AC, Side Wired, White

Technical Information

Action
Snap Switch
Actuator
Rocker
Amperage
15 Amp
Applications
Residential
Contact Configuration
Two Position
Contact Rating
15 A
Current
15 Amp
Number of Poles
1 Pole
Number of Positions
2
Operating Cycles
30000
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Power Rating
4155 W
Size
Standard Size
Standard
CSA,E3896,UL
Tc Connection
Side Wired
Temperature Rating
-20 degrees C Minimum Without Impact, 60 degrees C Maximum Continuous
Type
Rocker, Standard
Voltage
120/277 Volt
Wattage
4155 Watt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Trade-Select™

General Product Info

12-Digit UPC
883778110337
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
88377811033
Weight
0.1500 lb

Dimensions

Height
1 Inch
Length
4.2 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth, quiet rocker
  • Low profile, less than 1 inch deep
  • Self-grounding feature is standard
  • Standard Product
