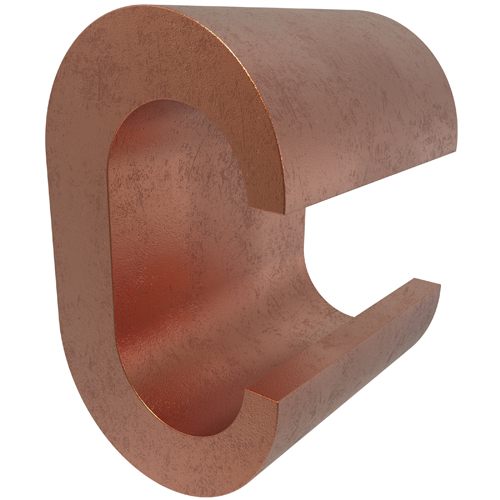

Product image for Ilsco ULT-12-Z Permaground Copper Grounding C Crimp, Main Conductor Range 4/0-3/0 Sol, Tap Range 4/0-3/0 Sol, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco ULT-12-Z Permaground Copper Grounding C Crimp, Main Conductor Range 4/0-3/0 Sol, Tap Range 4/0-3/0 Sol, UL, CSA

Manufacturer: Ilsco | Catalog # ULT-12-Z | Codale Part # 3228918
$27.09/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Permaground Copper Compression Grounding C Crimp, Copper material, Bare plated connector, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper Primary Conductor 4/0 Str - 3/0 Str, Copper Secondary Conductor 4/0 Str - 3/0 Str, rated for 35 kV, primary color Copper, die index D3,

Technical Information

Applications
Copper Compression Grounding C Crimp
Conductor Material
Copper
Conductor Type
Stranded
Direct Burial?
Yes
Material
Copper
Size
L:1.61;W:0.999;H:1.2 IN
Temperature Rating
90 degrees C
Type
ULT:COPPER C CRIMPS
Voltage
35 Volt

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Ilsco
Sub Brand
Permaground

General Product Info

12-Digit UPC
783669930832
Color
Copper
Product UPC
78366993083
Weight
0.305 lb

Dimensions

Height
1.2 Inch
Length
1.61 Inch
Width
0.999 in
