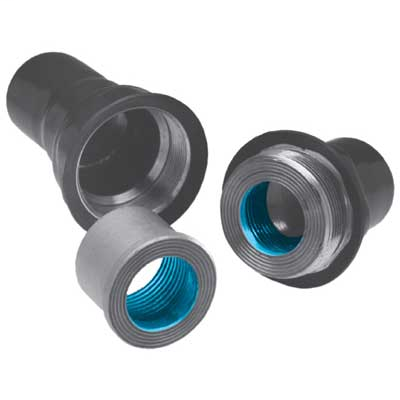

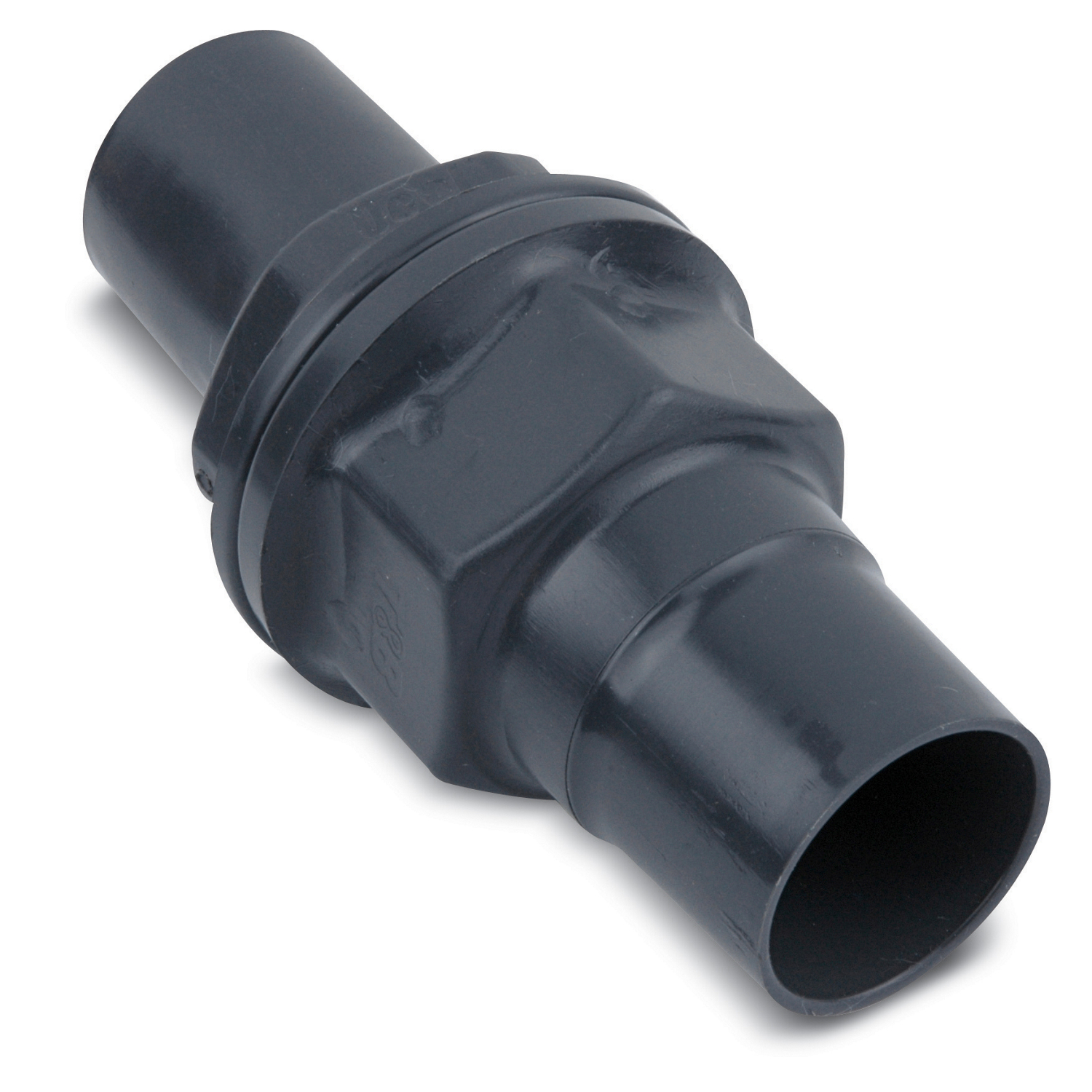

Ocal UNF305-G 1 Inch Ocal Gray Female Union

Manufacturer: ABB Ocal | Catalog # UNF305-G | Codale Part # 3228949
$220.95/ea
ea
Log in or register to view your price, purchase history, and more!
18 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
PVC Coated Explosion and Dust-Ignition Proof UNF Female Union, Pipe Size 1 Inch/27 Metric, 3 Piece, for Hazardous and Non-hazardous Locations, Overall Length 2.16 Inch/54.86 Millimeters, Overall Diameter 2.00 Inch/50.80 Millimeters, Electrogalvanized Steel, Gray

Technical Information

Applications
Used to Connect Conduit to Conduit, or to Provide a Means for Future Modification of the Conduit System
Connection Type
Female
Material
Steel
Size
1 in
Standard
CSA,UL 1203
Trade Size
1 Inch
Type
Type UNF

Manufacturer Information

Brand
ABB
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508413026
Color
Gray
Finish
PVC Coated
Product UPC
70450841302

Dimensions

Length
2.16 Inch
Outside Diameter
2.00 in
Notes
  • Dimensional values are of uncoated fittings.
  • Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.
Application
  • To connect conduit to conduit, or to provide a means for future modification of the conduit system.
Features
  • Pressure sealing sleeves to protect the connection.
  • Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.
  • A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.
