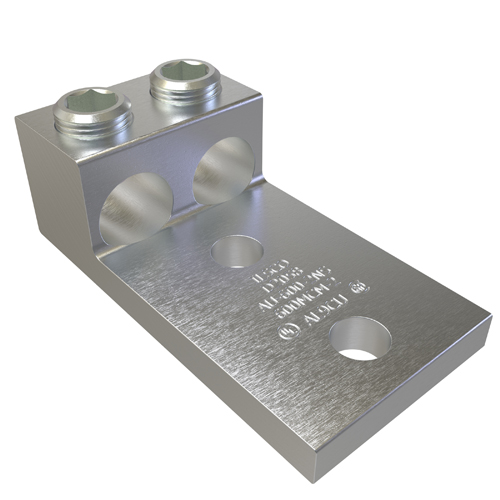

Product image for Ilsco AU-600-2NS Aluminum Mechanical Lug, Conductor Range 600-2, 2 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco AU-600-2NS Aluminum Mechanical Lug, Conductor Range 600-2, 2 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # AU-600-2NS | Codale Part # 3230171
$64.68/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Mechanical Lug, Two Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 600 kcmil - 2 Str, 2 conductors, 2 ports/wireways, Drive Type Main 1/2 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
For Aluminum and Copper Conductor
Conductor Material
Aluminum,Copper
Conductor Size
2 AWG-600 kcmil
Conductor Type
Aluminium, Solid, Stranded, Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
1-3/4 in
Number of Conductors
2
Number of Holes
2 Hole
Standard
UL File Number: E6207,CSA File Number: LR-29601,UL Specifications: UL 486A-B
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Dual-Rated
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669005769
Color
Silver
Finish
Tin Plated
Product UPC
78366900576
Weight
0.86 lb

Dimensions

Height
1.563 Inch
Length
4.688 Inch
Width
2.406 in
