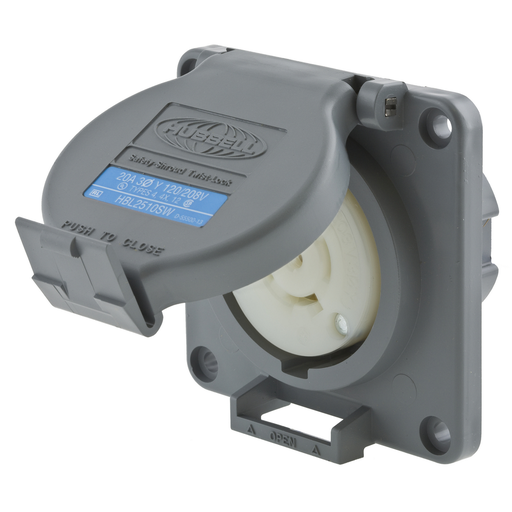

Product image for Hubbell HBL2510-SW 20A 3PhY 120/208V AC Twist-Lock Watertight SAFETY-SHROUD Gray VALOX Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Hubbell HBL2510-SW 20A 3PhY 120/208V AC Twist-Lock Watertight SAFETY-SHROUD Gray VALOX Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2510SW | Codale Part # 3231187
$240.63/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Receptacle, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, NEMA L21-20R, Screw Terminal, PBT housing and flange, Gray.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial Shrouded Watertight
Conductor Size
14-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Grade
Industrial
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw, Surface
NEMA
L21-20R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
4X,CSA,Type 12,Type 4,UL
Tc Connection
Screw Terminal
Type
Heavy Duty, Shrouded
Voltage
120/208 Volt
Wattage
4160 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585231501
Color
Gray and White
Environmental Conditions
Watertight
Product UPC
78358523150
Weight
0.65 lb

Dimensions

Height
2.9 Inch
Length
3-3/4 Inch
Width
3.200 in

Certifications and Compliance

Country of Origin
USA
Features
  • High impact, thermoplastic housing for heavy-duty industrial environments
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Shrouded Watertight Construction
