Hubbell HBL3326C 20 Amp 125/250 VAC 3-Pole 3-Wire Non-NEMA White Nylon Flanged Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL3326C | Codale Part # 3231729
$224.24/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Flanged Receptacle, 30A 125/250V, 3-Pole 3-Wire Non Grounding, Non-NEMA, Screw Terminal, White.

Technical Information

Amperage
20 Amp
Applications
Insulgrip
Conductor Size
10-2 AWG
Connection Type
Screw Terminal
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Nylon
Mounting Type
Screw
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Tc Connection
Screw Terminal
Type
Single, Standard Size, Non-NEMA
Voltage
125/250 Volt
Wattage
5000 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585039800
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358503980
Weight
0.3 lb

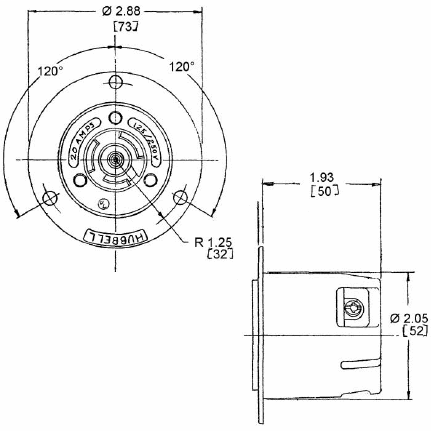

Dimensions

Height
1.93 Inch
Length
2.88 Inch
Width
2.88 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard
