Klein 11055-INS Insulated Klein-Kurve® Wire Stripper/Cutter Solid & Stranded Wire - 10-18 AWG Solid & 12-20 AWG Stranded

Manufacturer: Klein Tools | Catalog # 11055-INS | Codale Part # 3232068
$51.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet

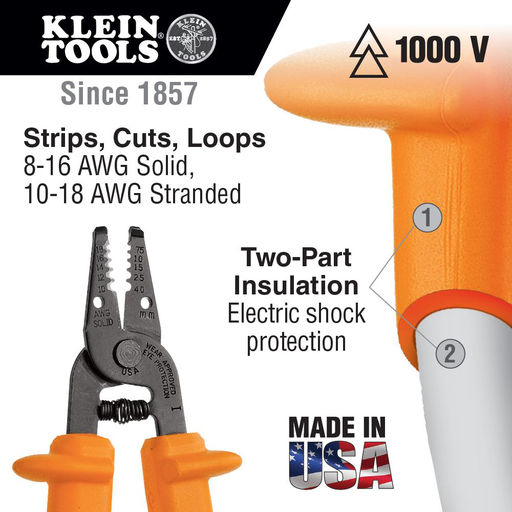

Guard against electric shock while working on live wires with the Klein Tools Insulated Wire Stripper/Cutter. This tool protects up to 1000 volts thanks to a dual-layer insulated coating. The dielectric white inner coating is bonded to the tool and the orange outer coating that is flame retardant and impact resistant.

Technical Information

Applications
For 18-10 AWG Solid and 20-12 AWG Stranded Copper Wire
Handle Type
2-Component, Dual Insulated
Insulated?
Yes
Material
Steel
Type
Insulated

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644740688
Handle Color
Orange
Handle Finish
2-Layer Insulation
Product UPC
09264474068
Weight
0.750 lb

Dimensions

Depth
8 Inch
Height
1-1/4 Inch
Overall Length
8 in
Width
4.900 in

Certifications and Compliance

Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Features
  • Individually tested to meet or exceed ASTM F1505-16 and IEC 60900:2018 standards for insulated tools
  • Cuts, strips, loops and gauges both 10-18 solid and 12-20 stranded AWG wire
  • Cleanly shears 6-32 and 8-32 screws
  • Spring-loaded action for self-opening
  • Hardened steel with precision ground stripping holes for easy removal of insulation
  • Strong gripping serrated nose for bending, shaping and pulling of wire
  • Comfortable curved handles
  • Compact and Lightweight, Spring Loaded For Self Opening
  • Cuts, strips and loops both 10-18 solid and 12-20 stranded AWG wire
  • Cuts, strips and loops both 10-18 solid and 12-20 stranded AWG wire and cleanly shears 6-32 and 8-32 screws
  • Made in USA
Warnings
  • Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Wear approved eye protection.
  • Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
  • Do not use for cutting steel wire
  • Do not use for cutting steel wire.
