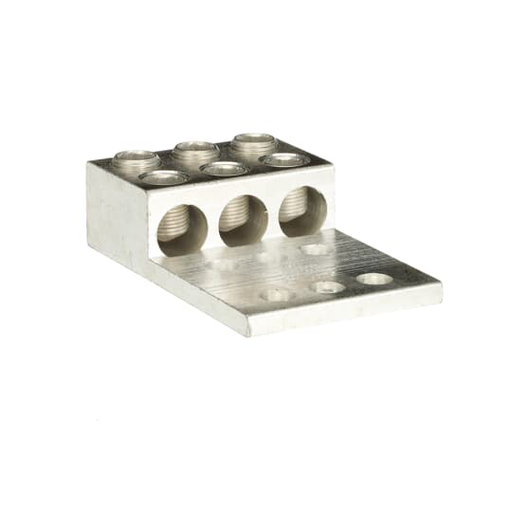

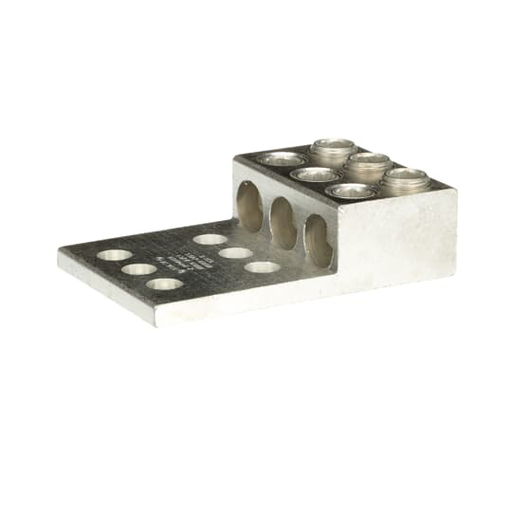

Blackburn ADR60-32D Extruded Aluminum Lug

Manufacturer: ABB Thomas & Betts | Catalog # ADR60-32D | Codale Part # 3232971
$14,486.20/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Type ADR-ALCUL Three-Conductor, Two-Hole Mount, Conductor Range Max 600 kcmil, Min 2 Str, 1/2 Inch Bolt Hole, NEMA Spacing 1-3/4 Inch Centers, Length 5-5/16 Inch, Tin Plated

Technical Information

Bolt Size
1/2 in
Conductor Size
2 AWG-600 kcmil
Conductor Type
Aluminum and Copper
Material
Aluminum
Number of Conductors
3
Standard
UL E9809
Type
Dual-Rated

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786610358
Finish
Tin Plated
Product UPC
78378661035

Dimensions

Length
5-5/16 Inch
Notes
  • NEMA spacing 1 3/4 inch centers.
  • UL 486B tested, AL9CU rated
  • Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix).
Certifications
  • UL
  • CSA
Features
  • Easy Installation - no special tools required.
