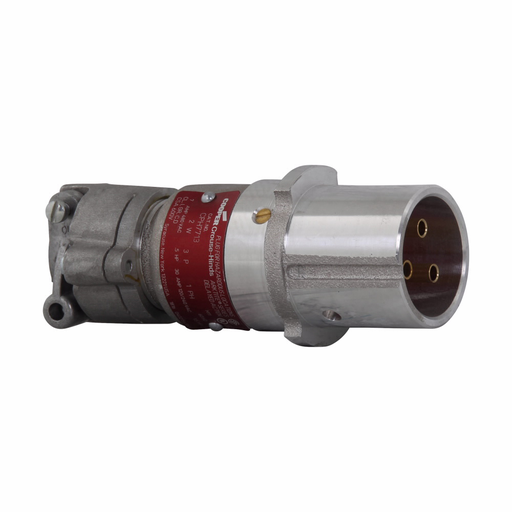

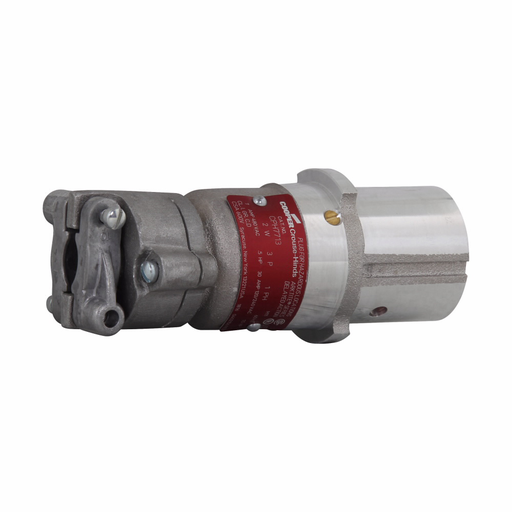

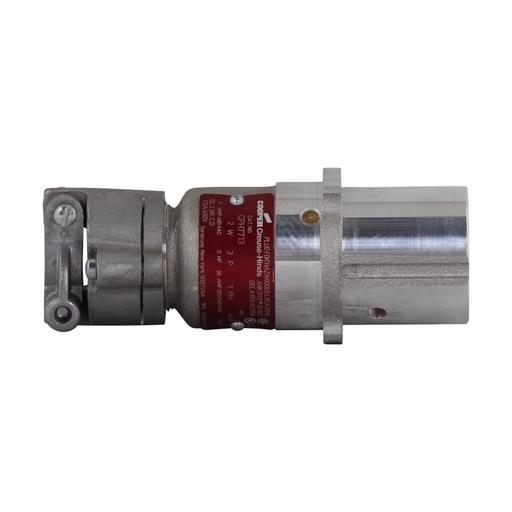

Product image for Crouse-Hinds Series CPH7713 480 Volt 7 Amp 3-Pole 2-Wire Receptacle Plug with Cable Grip and Bushing
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Crouse-Hinds Series CPH7713 480 Volt 7 Amp 3-Pole 2-Wire Receptacle Plug with Cable Grip and Bushing

Manufacturer: Eaton Crouse-Hinds | Catalog # CPH7713 | Codale Part # 3236102
$1,249.37/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Eaton Crouse-Hinds series Arktite CPH plug, 7A/30A, 0.375-0.875" cable dia, Two-wire, three-pole, Brass or copper contacts, Style 2, 0.5 HP/1.5 HP, Copper-free alum, Single-phase, Mechanical cable grip and neoprene bush, 120-240/480 Vac

Technical Information

Amperage
30 Amp
Applications
Industrial
Conductor Size
4-1 AWG
Cord Range
0.875 - 1.700 in
Cord Type
0.875 To 1.700 In
Horsepower
0.5 hp
Material
Aluminum
Number of Phases
1 Phase
Number of Poles
3 Pole
Size
4-1/8 In Diameter X 10-1/8 In Length
Standard
CSA C22.2,UL 1010,UL 1682,UL 514
Type
Pin And Sleeve
Voltage
120-240 Volt
Wire Size
4-1 AWG

Manufacturer Information

Brand
Crouse-Hinds
Sub Brand
Arktite

General Product Info

12-Digit UPC
782274173207
Product UPC
78227417320
Weight
1.2 lb

Dimensions

Height
2.38 Inch
Length
6 Inch
Width
2.38 in
