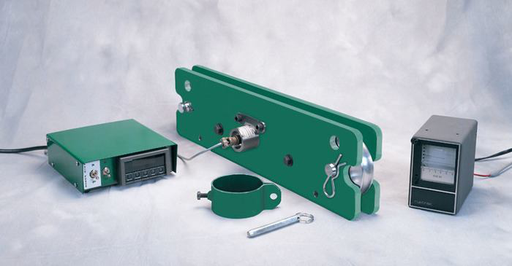

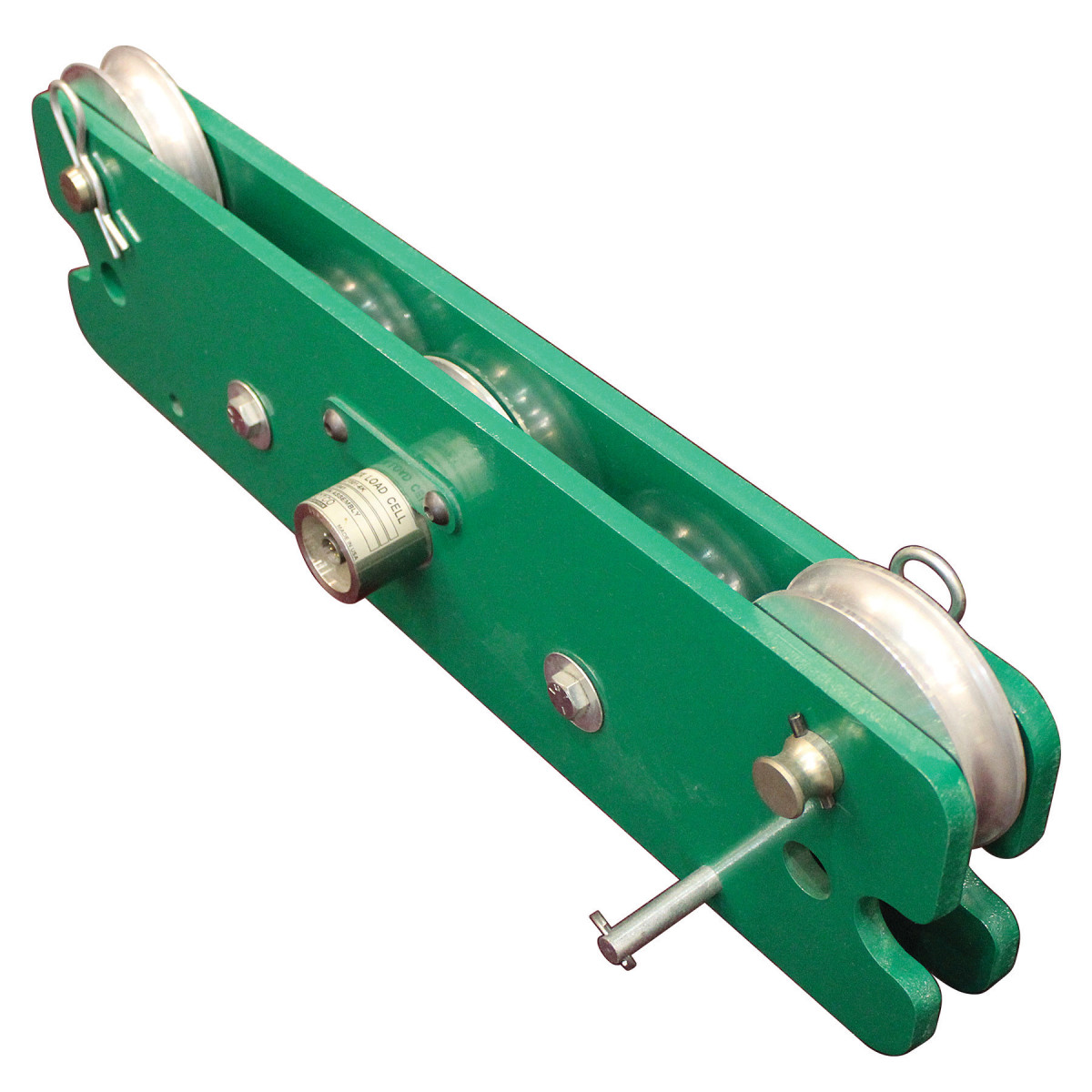

Greenlee 00967 Cable Puller Deluxe Force Gauge

Manufacturer: Greenlee | Catalog # 00967 | Codale Part # 3236767
$15,071.14/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Measures tension on the rope, to an accuracy of . 5 percent. Accuracy is not affected by initial rope size, or the change in rope size as it is loaded. 0-10 VDC Analog output to optional strip chart recorder for permanent record of pulling force. Switchable 120VAC receptacle for chart recorder. Use with pulling rope up to 7/8. diameter (22.2 mm) maximum. Also use with Kevlar® tape

Technical Information

Applications
Deluxe Force Gauge measures tension on rope.
Cable Size
7/8 In
Cable Type
Rope and Kevlar Tape
Type
Deluxe

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310009672
Product UPC
78331000967
Weight
45.4400 lb
Features
  • Measures tension on the rope, to an accuracy of 5%
  • Accuracy is not affected by initial rope size, or the change in rope size as it is loaded
  • 0-10 VDC Analog output to optional strip chart recorder for permanent record of pulling force
  • Switchable 120VAC receptacle for chart recorder
  • Use with pulling rope up to 7/8 IN diameter (22.2 mm) maximum. Also use with Kevlar® tape.
Specifications
  • 22410 UPC 22410 Fan Fold Chart Paper- 15 pack
  • 22451 UPC 22410 Recorder Pens- 5 pack
