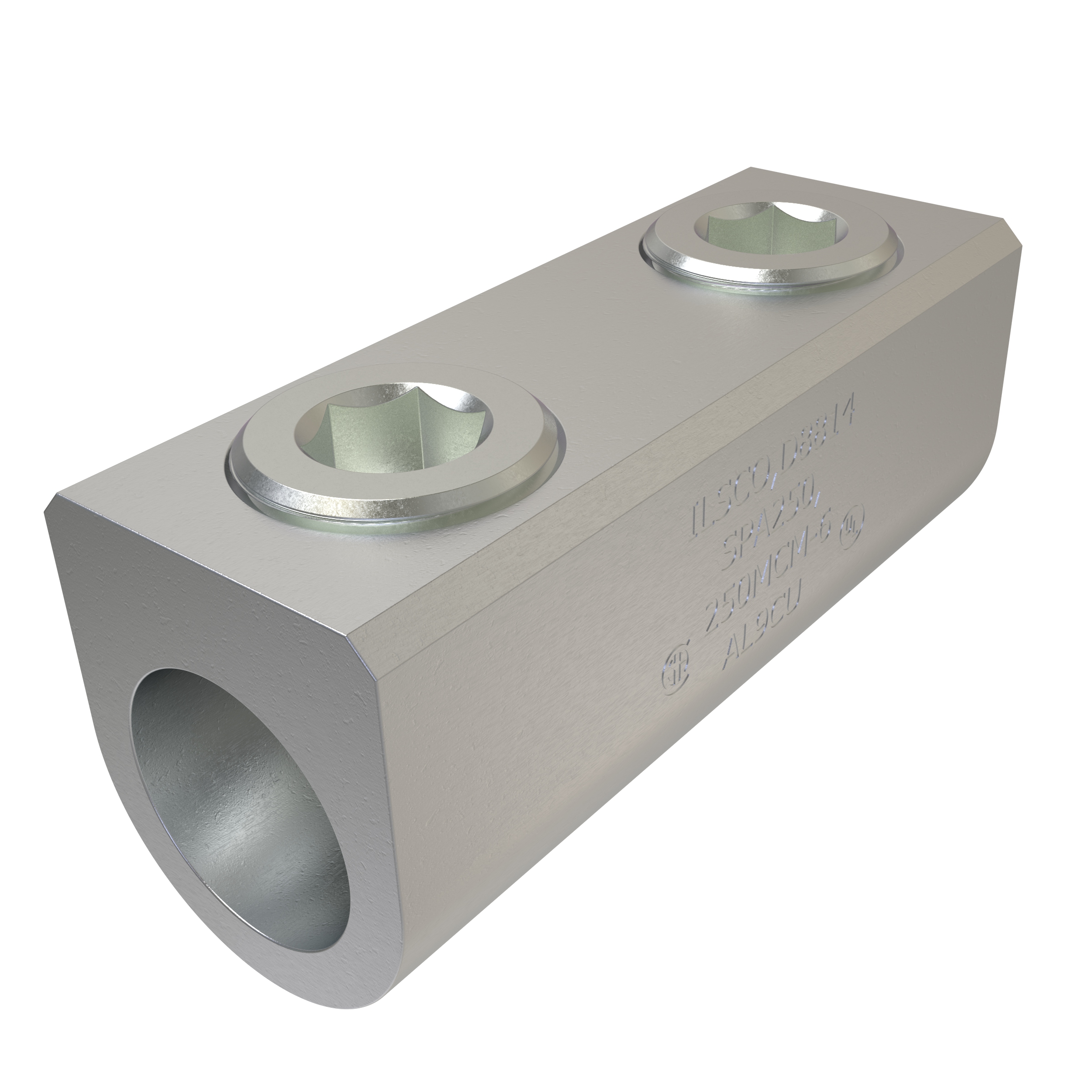

Product image for Ilsco SPA-250 Aluminum Splicer/Reducer, Dual Rated, Conductor Range 250-6, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco SPA-250 Aluminum Splicer/Reducer, Dual Rated, Conductor Range 250-6, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # SPA-250 | Codale Part # 3237698
$23.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Splicer/Reducer, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, Copper/Aluminum Secondary Conductor 250 kcmil - 6 Str, 2 conductors, 2 ports/wireways, Drive Type Main 5/16 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
For Aluminum and Copper Conductor
Conductor Material
Aluminum,Copper
Conductor Size
6 AWG-250 kcmil
Conductor Type
Aluminium, Solid, Stranded, Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Number of Conductors
2
Number of Ports
1
Standard
UL File Number: E6207,UL Specifications: UL 486A-B,CSA File Number: LR-29601
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Dual-Rated
Voltage
35 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669857047
Color
Silver
Finish
Tin Plated
Product UPC
78366985704
Weight
0.125 lb

Dimensions

Height
1 Inch
Length
2.312 Inch
Width
0.875 in
