Hubbell HBL7596 15 Amp 125 VAC 2-Pole 3-Wire NEMA ML-2R Stainless Steel Flanged Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7596 | Codale Part # 3237750
$96.02/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Locking Devices, Midget Twist-Lock®, Industrial, Flanged Receptacle, 15A 125V AC, 2-Pole 3-Wire Grounding, NEMA ML- 2R, Screw Terminal, Stainless Steel Flange.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Base Material
Phenolic
Conductor Size
14 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA

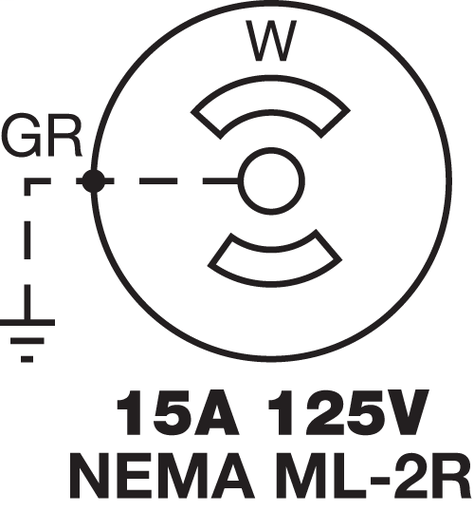

ML-2R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Midget Locking Devices
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Screw Terminal
Type
Standard, Midget, Heavy Duty, Industrial
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585237817
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358523781
Weight
0.05 lb

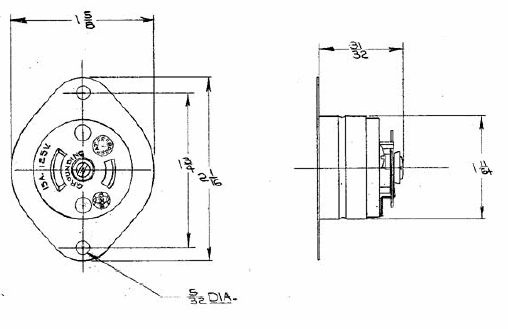

Dimensions

Height
0.96 Inch
Length
2.06 Inch
Width
1.62 in

Certifications and Compliance

Country of Origin
USA
Features
  • Stainless Steel mounting flange
  • High heat resistant phenolic base
  • Standard
