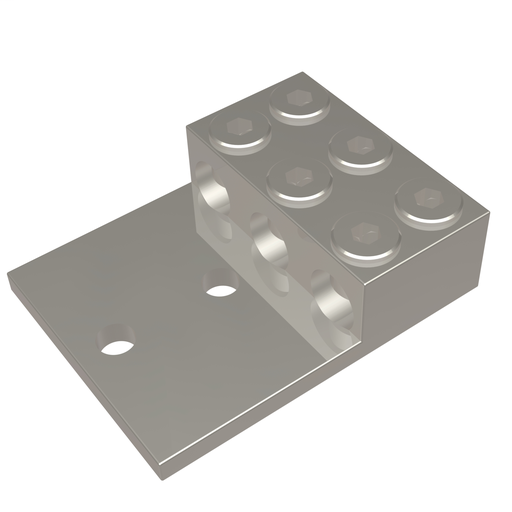

Product image for Burndy KK3A40U2N Aluminum Universal Terminal, 3 Conductor, 2 Hole, 300-800 kcmil, 1/2" Stud, 175" Stud Hole Spacing, 6 Screws, Al/Cu Rated, Tin Plated
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Burndy KK3A40U2N Aluminum Universal Terminal, 3 Conductor, 2 Hole, 300-800 kcmil, 1/2" Stud, 175" Stud Hole Spacing, 6 Screws, Al/Cu Rated, Tin Plated

Manufacturer: Hubbell-Burndy | Catalog # KK3A40U2N | Codale Part # 3238270
$439.81/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Aluminum Universal Terminal, 3 Conductor, 2 Hole, 300-800 kcmil, 1/2" Stud, 1.75" Stud Hole Spacing, 6 Screws, Al/Cu Rated, Tin Plated

Technical Information

Applications
For Aluminum and Copper Conductors
Bolt Hole Size
0.56 in
Conductor Size
300 kcmil
Connection Type
Terminal
Direct Burial?
No
Material
Aluminum
Number of Holes
2 Hole
Plated?
Yes
Plating Type
Tin
Type
Bolted Lugs & Terminals

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810600474
Product UPC
78181060047
Weight
2.2200 lb

Dimensions

Length
6.19 Inch
Pad Width
4.28 in
Width
4.81 in

Certifications and Compliance

Buy American Compliant
Y
