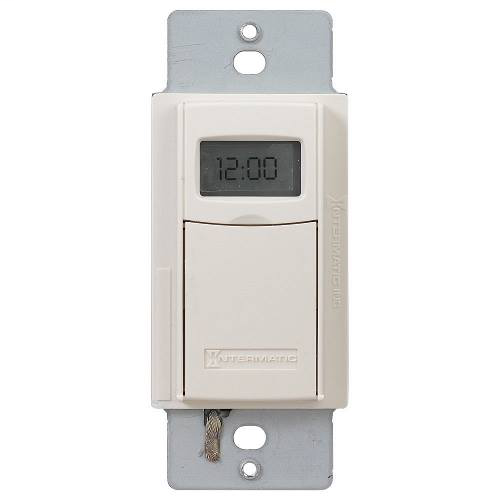

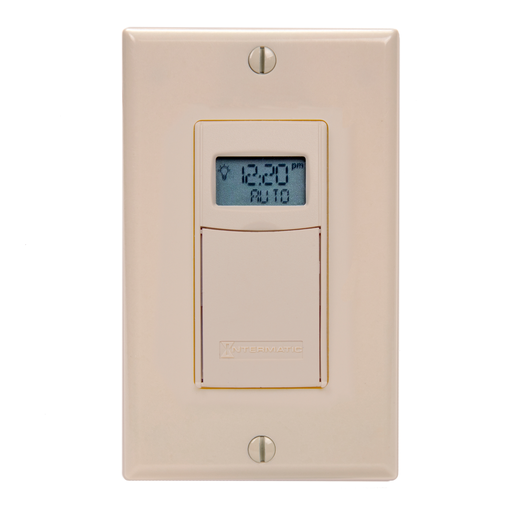

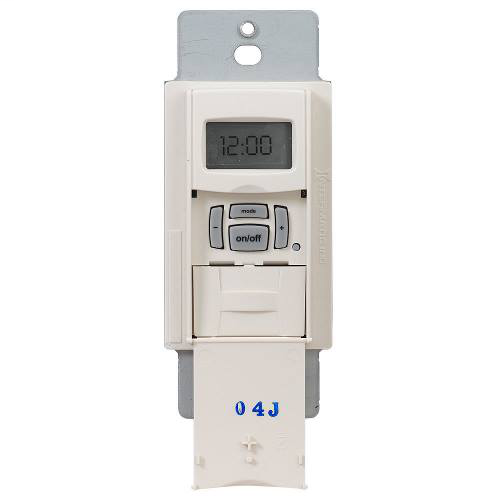

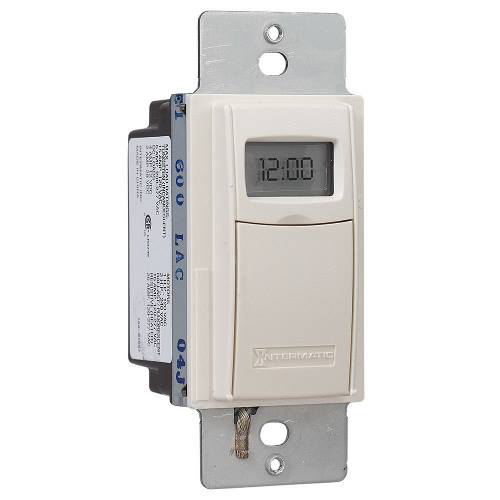

Product image for Intermatic EI600LAC 7-Day 120 to 277 VACb12 to 28 VDC 1-Pole 3-Way Light Almond Digital In-Wall Timer
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Intermatic EI600LAC 7-Day 120 to 277 VACb12 to 28 VDC 1-Pole 3-Way Light Almond Digital In-Wall Timer

Manufacturer: Intermatic | Catalog # EI600LAC | Codale Part # 3239731
$157.53 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
Highly versatile Heavy-Duty Timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Technical Information

Action
SPST
Amperage
15/20 Amp
Applications
Incandescent Lighting, Fluorescent Lighting, HVACR, CFL Lighting and LED Lighting Applications
Contact Configuration
1 NO
Contact Rating
20 A
Input Voltage
12-28 V
Material
Plastic
Max Operating Temperature
104 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
122 degrees F
Size
2.75 HEIGHT X 1.75 WIDTH X 1.36 DEPTH IN, 69.85 HEIGHT X 44.45 WIDTH X 34.54 DEPTH MM
Standard
CCSAus Certified,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Type
Digital In-Wall 7-Day Astronomic
Voltage
127 Volt
Wattage
5540 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275101425
Color
Almond
Product UPC
07827510142
Weight
0.472 lb

Dimensions

Depth
1.813 Inch
Height
4-1/8 Inch
Warranty Length
5 yr
Width
1.75 in

Certifications and Compliance

Country of Origin
Thailand

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Features
  • Versatile 7-day programmable schedules with up to 40 ON/OFF events
  • Astronomic clock feature determines dawn and dusk times
  • Automatic Daylight Saving Time (DST) adjustment
  • Random mode varies ON/OFF schedule to provide a \"lived-in\" appearance
  • Single or 3-way switch compatible installation
  • Incandescent/fluorescent/CFL/LED compatible
  • Isolated switch allows timer to be used with any load type, including AC and DC loads
  • Replaceable CR2 lithium battery provides up to three years of operation
  • No neutral wire connection enables easy retrofitting and quicker installation
  • Decorator switch plate not included
