Burndy BISR4DB In-Line Splice/Reducer, 2 Port, 6-4 AWG, Al/Cu Rated

Manufacturer: Hubbell-Burndy | Catalog # BISR4DB | Codale Part # 3240472
$77.25/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
In-Line Splice/Reducer, 2 Port, 6-4 AWG, Al/Cu Rated.

Technical Information

Applications
For Outside Direct Burial
Conductor Size
6-4 AWG
Connection Type
Screw
Insulation Type
Plastisol
Material
Aluminum
Number of Ports
2
Plated?
No
Plating Type
Unplated
Size

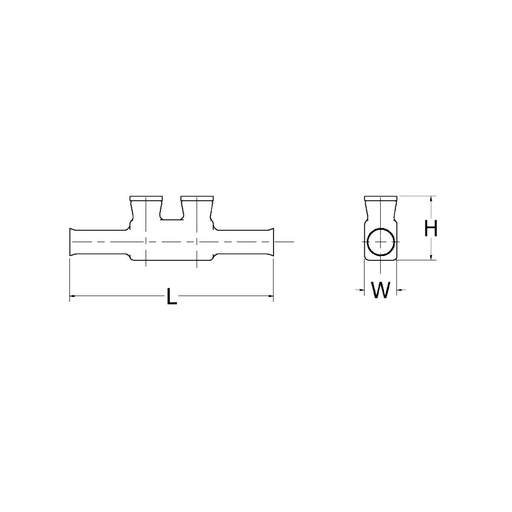

1.28 IN Height X 0.8 IN Width X 4.3 IN Length
Standard
CSA,E2186,UL
Stud Size
1/8 in
Temperature Rating
90 degrees C
Type
BISR, Direct Burial, 2-Level
Voltage
600 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
Mole™, Unitap™

General Product Info

12-Digit UPC
781810288054
Product UPC
78181028805
Weight
0.0026 lb

Dimensions

Height
1.39 Inch
Length
4.3 Inch
Overall Length
109.22 mm
Width
17.27 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • Type BISR In-Line Splice/Reducers are easily installed on code conductor
  • UL486B Listed, Dual rated AL9CU for any stranded copper or stranded aluminum applications
