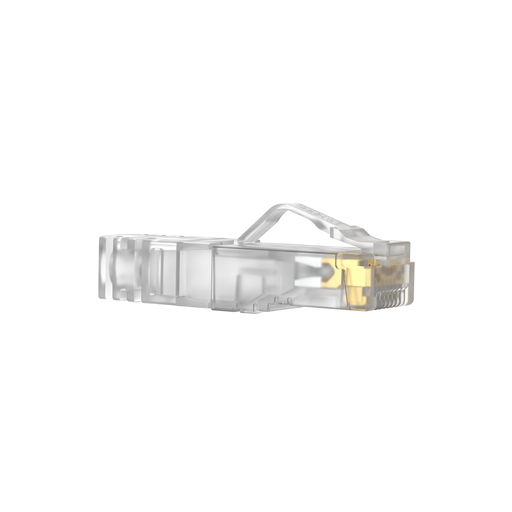

Panduit SP688-C Modular Plug, Category 6, 23-24 AWG, 100 Pack

Manufacturer: PANDUIT | Catalog # SP688-C | Codale Part # 3246341
$4.00/ea
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The Cat 6 UTP modular plug terminates 4-pair, 23-24 AWG, 100 ohm, solid or stranded unshielded twisted pair patch cable with maximum conductor insulation diameter of 0.042 inches (1.07mm) and maximum jacket diameter of 0.250 inches (6.35mm). The modular plug has a robust construction that is rated to 2500 mating cycles. The patented tangle-free latch prevents snags and provides easy release, saving time and providing reliability on moves, adds, and changes. This includes 100 per package.

Technical Information

Applications
Unshielded
Cable Size
24 AWG
Cable Type
Category 6
Material
Polycarbonate
Max Operating Temperature
140 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6
Type
Modular Plug

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Plug®

General Product Info

12-Digit UPC
074983914166
Color
Clear
Product UPC
07498391416
Weight
0.8400 lb

Dimensions

Depth
1.6 Inch
Height
0.52 Inch
Width
0.46 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica,USA
Standards and Certifications
  • Standards Met: Exceeds ANSI/TIA Category 6 and ISO Class E performance requirements when properly terminated to Panduit Category 6 UTP copper cable, Meets ANSI/TIA-1096-A, IEC 60603-7, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS compliant
