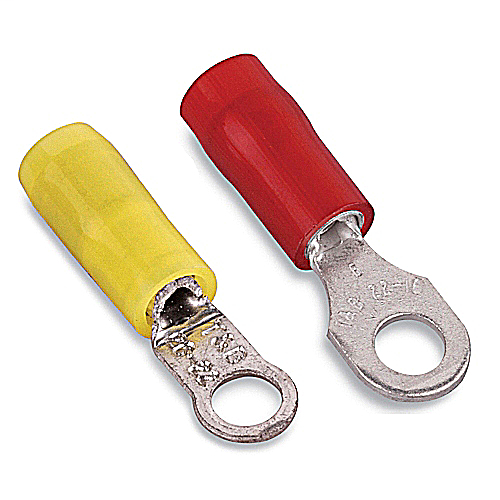

Thomas & Betts RA18-14 22 to 16 AWG 1/4 Inch Stud Red Electrotinned Copper Nylon Insulated Ring Terminal

Manufacturer: ABB Thomas & Betts | Catalog # RA18-14 | Codale Part # 3246475
$205.95/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

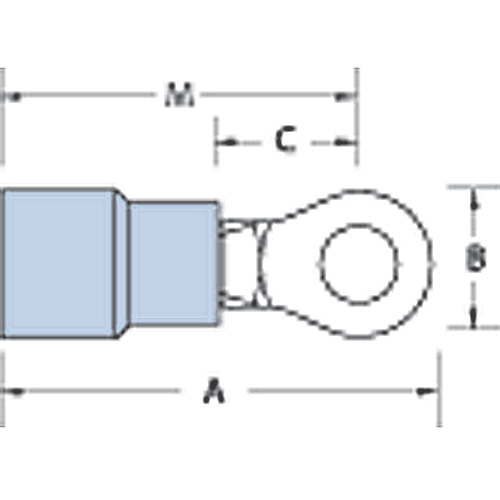

Nylon Insulated Ring Terminal, Length 1.10 Inches, Width .46 Inches, Maximum Insulation .136, Bolt Hole 1/4 Inch, Wire Range #22-#16 AWG, Color Red, Tin Plated

Technical Information

Conductor Size
22-16 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
1/4 in
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Long Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803944
Color
Red
Finish
Tin Plated
Product UPC
78621080394
Used With
Round Conductors
Weight
0.3400 lb

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.3 in
Features
  • Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
Certifications
  • UL
  • CSA
