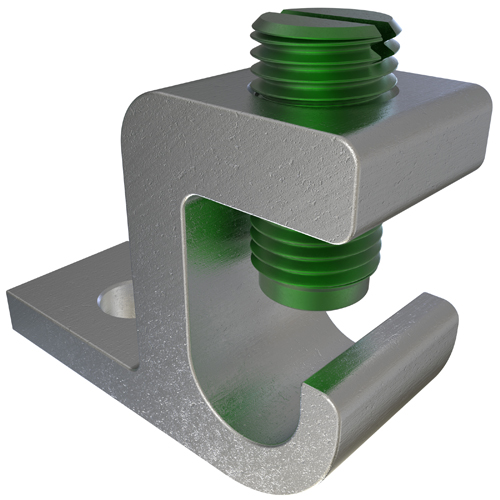

Ilsco GBL-1/0 Aluminum Lay-in Ground Lug, Dual Rated, Conductor Range 1/0-14, Tin Plated

Manufacturer: Ilsco | Catalog # GBL-1/0 | Codale Part # 3253515
$4.94/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Lay-in Ground Lug, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 467 Listed, Copper/Aluminum Primary Conductor 1/0 Str - 14 Str and 10 Sol - 14 Sol, 1 conductors, 1 ports/wireways, Drive Type Main Slotted,

Technical Information

Applications
Lay-in Ground Lug
Conductor Material
Copper or Aluminum
Conductor Size
14-1/0 AWG
Conductor Type
Solid/Stranded
Connector Type
Clamp Screw
Material
Aluminum
Mounting Hole Size
9/32 in
Number of Conductors
1
Standard
UL Specifications: UL 467 Recognized,UL File Number: E34440
Stud Size
1/4 in
Tc Connection
Mechanical
Type
Dual Rated, Lay-In

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669960105
Finish
Electro-Tin Plated
Product UPC
78366996010
Weight
0.0400 lb
