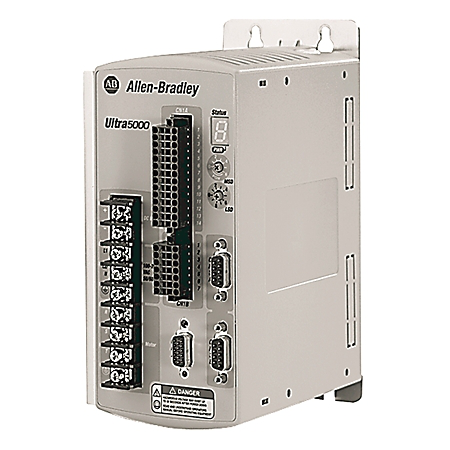

Allen Bradley 2098-DSD-020X-DN 230 Volt Servo Drive

Manufacturer: Allen Bradley / Rockwell | Catalog # 2098-DSD-020X-DN | Codale Part # 3253883
$3,551.59/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Servo Drive, Indexing, 2 kW, 230V AC Inputs, 7/21 A Rms, DeviceNet Interface

Technical Information

Control Type
DeviceNet Interface
Input Current
18 A
Input Voltage
100 - 240 VAC
Output Current
7.1 A
Power Rating
1 kW at 230 VAC, 0.5 kW at 115 VAC
Temperature Rating
55 degrees C
Type
Digital, Indexing
Voltage
115-230 Volt
Wattage
2 kW

Manufacturer Information

Brand
Allen-Bradley

General Product Info

12-Digit UPC
662453934402
Environmental Conditions
-40 to 70 C Storage, 5 - 95% Non-Condensing Relative Humidity
Product UPC
66245393440
Weight
6.8400 lb
Features
  • Field-programmable flash memory firmware storage
  • One serial port for RS-232 or RS-485 communications
  • Uses standard high-density D-Shell connectors
  • Four selectable general purpose outputs and relay output
  • Built-in support for multi-turn absolute encoders or an option to supply external logic power to maintain position during power loss
  • Eight selectable general purpose inputs
  • The Ultra™ 3000 servo drive does not comply with the European Union (2011/65/EU) RoHS directive that restricts the use of hazardous substances and cannot be shipped to areas that require RoHS compliance.
