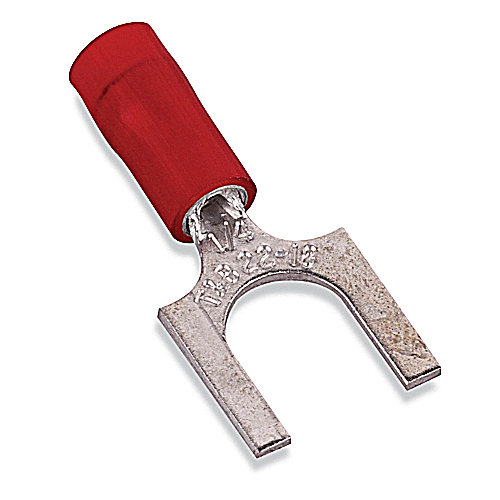

Thomas & Betts RA18-14F 22 to 16 AWG 1/4 Inch Stud Red Electrotinned Copper Nylon Insulated Fork Terminal

Manufacturer: ABB Thomas & Betts | Catalog # RA18-14F | Codale Part # 3255178
$191.95/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

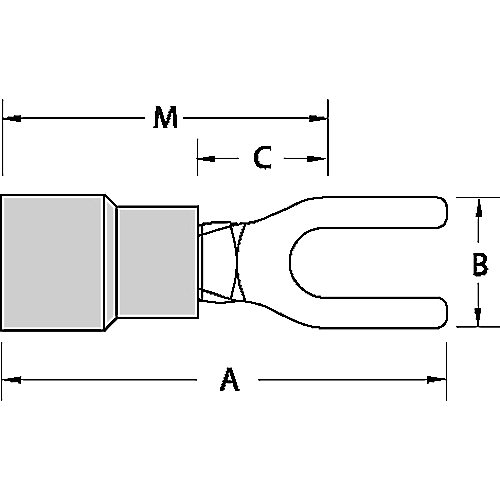

Nylon Insulated Fork Terminal, Length .95 Inches, Width .44 Inches, Maximum Insulation .136, Bolt Hole 1/4 Inch, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22-16 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
1/4 in
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Long Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803951
Color
Red
Finish
Tin Plated
Product UPC
78621080395
Used With
Round Conductors
Weight
0.3000 lb

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.3 in
Features
  • Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
Certifications
  • CSA
  • UL
