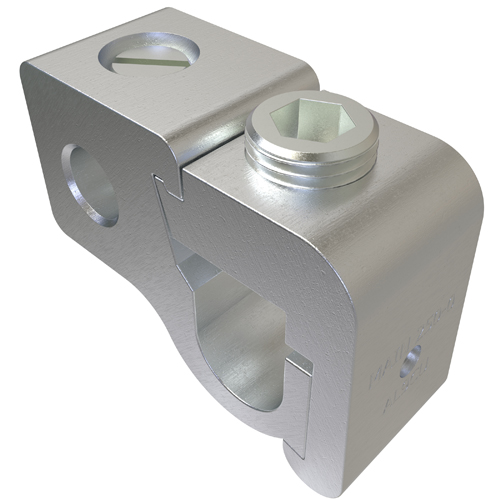

Image thumbnail 2
Email

Ilsco GTA-250-0 Aluminum Parallel Tap Connector, Dual Rated, Main Conductor Range 250-1/0, Tap Range 1/0-12 AL, 1/0-14 CU, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # GTA-250-0 | Codale Part # 3256282
$41.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Parallel Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 1/0 Str, Copper Secondary Conductor 10 Sol - 14 Sol and 1/0 Str - 14 Str, Aluminum Secondary Conductor 10 Sol - 12 Sol and 1/0 Str - 12 Str, 2 conductors, Drive Type Main 5/16 Internal Hex, Drive Type Tap Slotted, rated for 600 V, primary color Silver, 1 poles,

Technical Information

Applications
Parallel Tap Connector
Conductor Size
250 kcmil-1/0 AWG Copper Stranded (Primary, Run, Main, Line), 250 kcmil-1/0 AWG Aluminum Stranded (Primary, Run, Main, Line), 10-12 AWG Aluminum Solid (Secondary, tap, load), 10-14 AWG Copper Solid (Secondary, tap, load), 1/0-12 AWG Aluminum Stranded (Secondary, tap, load), 1/0-14 AWG Copper Stranded (Secondary, tap, load)
Material
Aluminum
Number of Conductors
2
Number of Ports
1
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Parallel Lay-In
Voltage
600 Volt

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669342208
Color
Silver
Finish
Tin Plated
Product UPC
78366934220

Dimensions

Height
1.437 in
Length
2.000 in
Width
0.937 in
