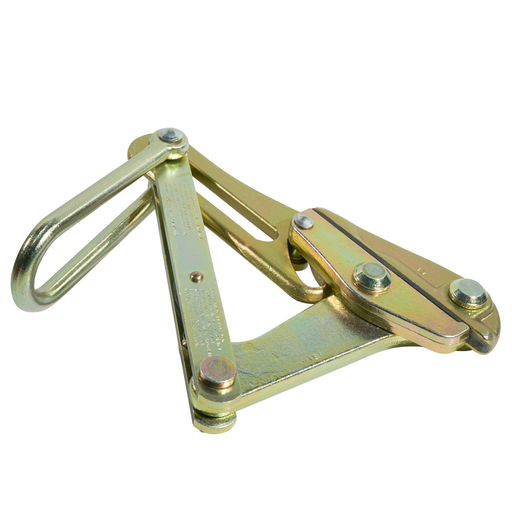

Image thumbnail 1

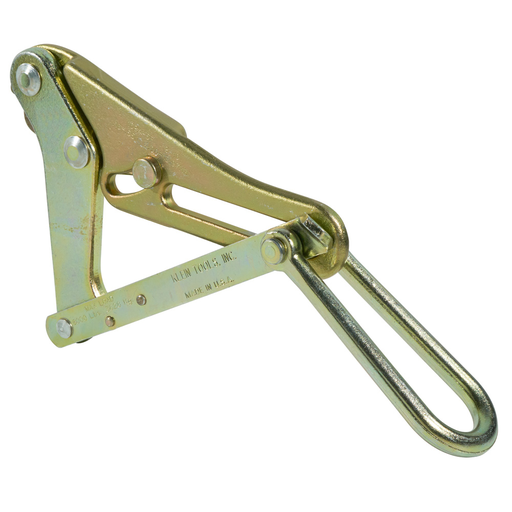

Image thumbnail 2

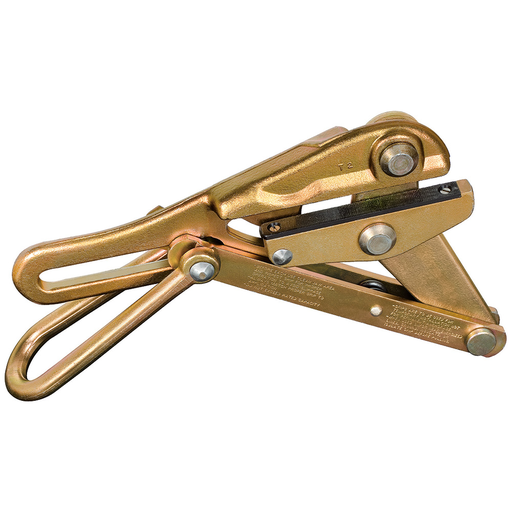

Image thumbnail 3
Image thumbnail 4
Email

Klein 1684-5F Chicago® Cable Grip, for High Strength Cable

Manufacturer: Klein Tools | Catalog # 1684-5F | Codale Part # 3256568
$689.96/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.16-Inch to 0.55-Inch (4.06 - 13.97 mm). Double -InchV-Inch grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable.

Technical Information

Applications
For Extra-High-Strength Cables, Messenger, Guy Strand
Bundle Diameter
1/16 To 4-3/4 IN
Cable Type
Aircraft,EHS,Guy Strand,Messenger
Jaw Type
Single V With File Insert
Load Capacity
8000 lbs. (3629 kg.)
Material
Steel
Standard
CSA,UL Listed,RoHS
Tensile Strength
50 LB
Type
Diamond Jaw

Manufacturer Information

Brand
Klein Tools, Inc.
Sub Brand
Chicago Grip

General Product Info

12-Digit UPC
092644479465
Color
Natural
Product UPC
08008370200
Weight
6.375 lb

Dimensions

Chain Cable Diameter
0.16 To 0.55 in
Depth
9-1/4 Inch
Height
1.76 Inch
Jaw Length
5 in
Length
5 InchJaw
Thickness
053 IN
Width
6.500 in

Certifications and Compliance

Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Features
  • Designed for cable sizes from 0.16-Inch (4.06 mm) to 0.55-Inch (13.97 mm)
  • Double \"V\" grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
  • For larger conductors, see our grips with round inside-jaw contour
  • Similar to Cat. No. 1684-5 except with a file inserted in jaw for extra gripping power. Replacement file No. 578 and screws No. 573 are also available
  • Locking handle keeps jaw open while grip is placed on cable with a hot stick
  • Made in USA
  • Removeable file (Replacement file Cat. No. 578 and screws Cat. No. 573)
  • Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
Warnings
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.
