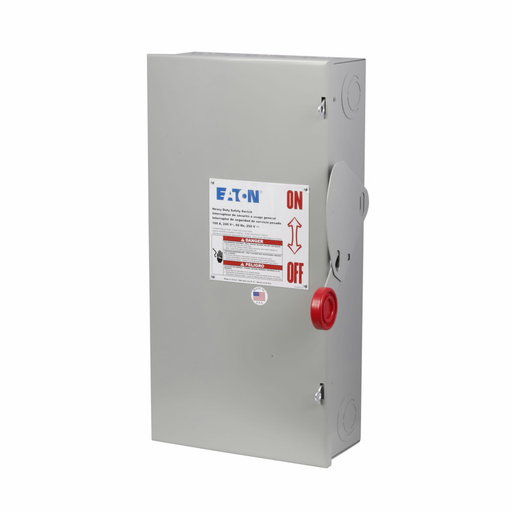

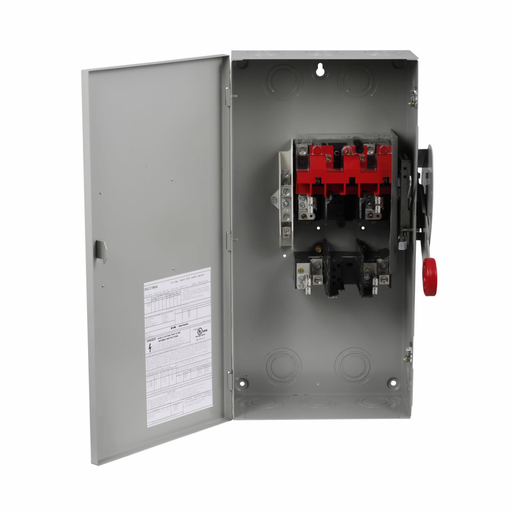

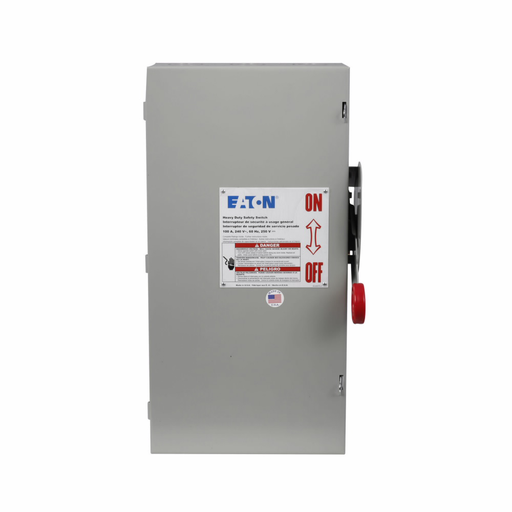

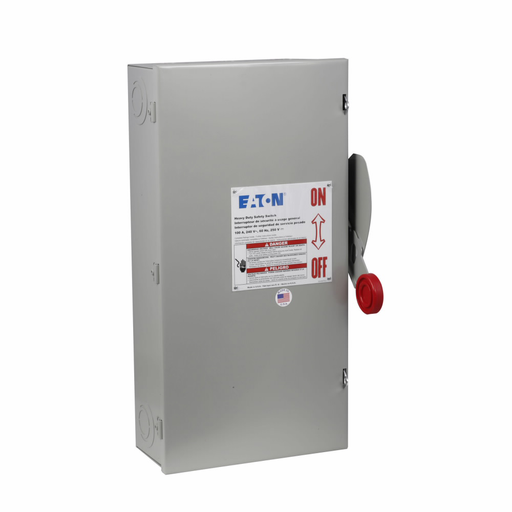

Eaton DH363NGK Heavy Duty Safety Switch

Manufacturer: Eaton Cutler-Hammer | Catalog # DH363NGK | Codale Part # 3259020
$885.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Eaton Heavy duty single-throw fused safety switch, 100 A, NEMA 1, Painted steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 30, 40/ 60, 75 hp (1/3PH @480, 600 V), #14-#1/0 Cu/Al

Technical Information

Amperage
100 Amp
Applications
Commercial / Institutional Buildings / Structures - Power Distribution and Controls
Enclosure
NEMA 1
Enclosure Material
Steel
Material
Steel
Number of Poles
3 Pole
Number of Wires
4 Wire
Type
Heavy Duty Fusible Safety Switch
Voltage
600 Volt

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
782113206486
Product UPC
78211320648
Weight
23 lb

Dimensions

Height
9 Inch
Length
22-1/2 Inch
