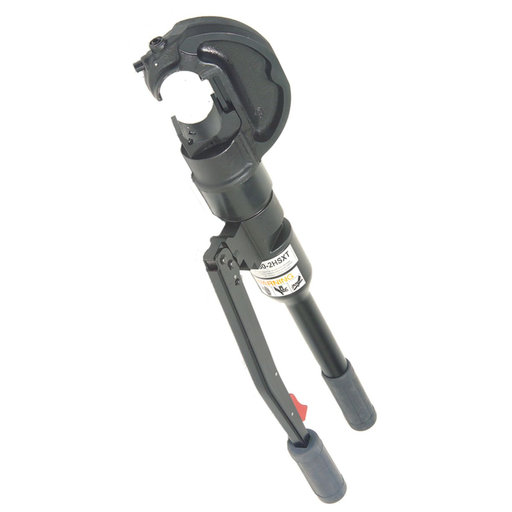

Burndy Y750HSXT 12T C-Head Crimper, #14-750 kcmil CU, #8-750 kcmil AL, #4-5565 kcmil ACSR

Manufacturer: Hubbell-Burndy | Catalog # Y750HSXT | Codale Part # 3259274
$4,920.19/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
12-Ton C-Head Crimper, Self Contained Hydraulic, Uses U Dies, #14 AWG-750 kcmil Copper, 8 AWG - 750 kcmil Aluminum, 4 AWG - 556.5 kcmil ACSR.

Technical Information

Applications
For Crimping, Tension Sleeves, Taps, Aerial Cable, Terminals and Splices, Hyground® Compression Grounding
Crimping Force
12 t
Handle Type
Comfort Grip
Pressure Rating
700 bar
Type
Self-Contained, Hydraulic, C-Head

Manufacturer Information

Brand
Burndy
Sub Brand
Hypress™

General Product Info

12-Digit UPC
781810458600
Product UPC
78181045860
Weight
17.2 lb

Dimensions

Depth
8.9 Inch
Height
3.06 Inch
Length
23.96 Inch
Overall Length
23.96 in
Warranty Length
5 yr
Width
24.1 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No

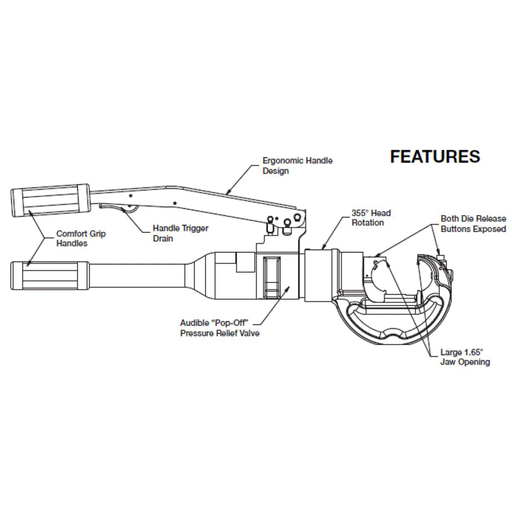

Features
  • Easy tool positioning with its 355 head rotation
  • Patented rapid advance pump for faster crimps
  • Comfort grip handles
  • Audible \"pop-off\" pressure relief valve
  • Handle drain trigger
  • Easy tool positioning with its 355° head rotation,Patented rapid advance pump for faster crimps,Handle trigger drain for convenient ram retraction
