Hubbell HBL8200HDUP Receptacle, COM/HG, 15A 125V, 5-15R, BR

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8200H | Codale Part # 3260507
$7.78/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Compact Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5- 15R, Brown, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Slender/Compact Hospital Grade
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
PBT
Grade
Hospital
Grounding
Self
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw, Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Slender/Compact
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Finder Groove Face
Tc Connection
Back and Side Wired Terminal Screws
Type
Receptacle
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585015828
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Hospital Grade
Product UPC
78358501582
Weight
0.25 lb

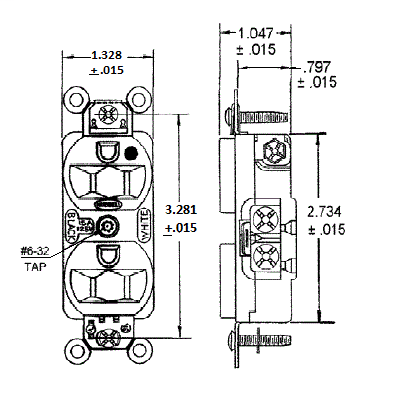

Dimensions

Height
1.05 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • 1-Piece Brass Integral Ground Strap for Low Resistance of Fault Currents
  • Ground Retention Clips for Longer, More Consistent Contact Pressure
  • Exclusive Bypass Contact Design Results in Greater Contact Force and Reduced Heat Buildup
  • ID Marking Surface Provides Quick, Sure Circuit Identification
  • Barbed Assembly Arms Reduce Possibility of Face/Base Separation
  • RTP Base Offers Greater Heat Resistance, Plus Contact Stability
  • External Bundling Terminals Contain Wire Strands and are Designed for Quick Inspection
  • Deep Nylon Body Design Delivers Increased Impact Resistance
Additional Information
  • Contact Material Brass
  • Strap Material Galvanized Steel
  • Operating Temperature -40 to 75 Deg C
