Wiremold 1546A 1500/2600-Series Overfloor Raceway Single Receptacle Box

Manufacturer: Legrand Wiremold | Catalog # 1546A | Codale Part # 3260904
$43.98/ea
ea
Log in or register to view your price, purchase history, and more!
173 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
Pancake® Overfloor Steel Raceway is ideal for open space wiring of workstations and desk areas in high traffic sites. Both the 1500 and 2600 Series Raceways mount directly to the floor and provide safe load bearing strength for normal office use. Both raceway models offer a full complement of fittings and device boxes for power and communication wiring. Pancake Overfloor Raceway comes unpainted with a paintable galvanized finish.

Technical Information

Applications
Commercial
Capacity
Single-Channel
Material
Steel
Type
Raceway
Voltage
600 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786776082951
Color
Gray
Jacket Color
Galvanized Steel
Product Series
1500,2600
Product UPC
78677608295
Weight
0.3600 lb

Dimensions

Depth
1.312 Inch
Length
5.312 Inch
Outside Diameter
3 1/16" x 1 5/16"
Width
3.062 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
NAFTA,ROHS,UL
Country of Origin
USA
Features

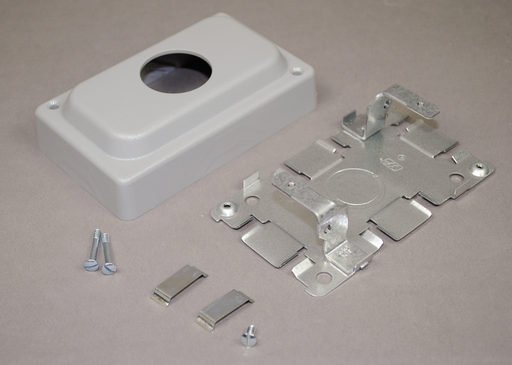

  • Will accommodate commercially available straight blade and locking single receptacles with face diameters of 1.38-1.40'' (35-36mm). Base has 1/2'' and 3/4'' trade size concentric KOs.
  • Nonmetallic cover has 1500 and 2600 Series Raceway twistouts on all four sides. Two 1500WC Wire Clips included. Gray finish.
  • NOTE: Certified to Canadian Safety Standards. For sale in Canada. When ordering these products, add ''C'' prefix to part number to denote the Canadian version, i.e ''C1546A''.
Certifications
  • RoHS Compliant
  • UL Listed
