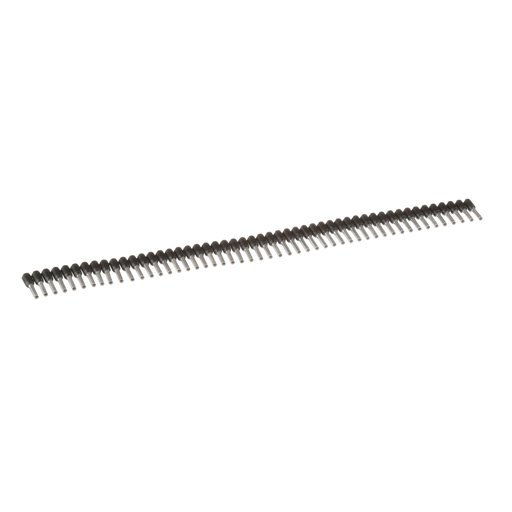

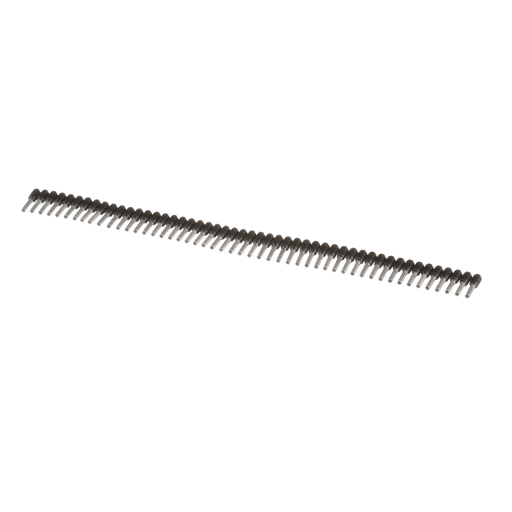

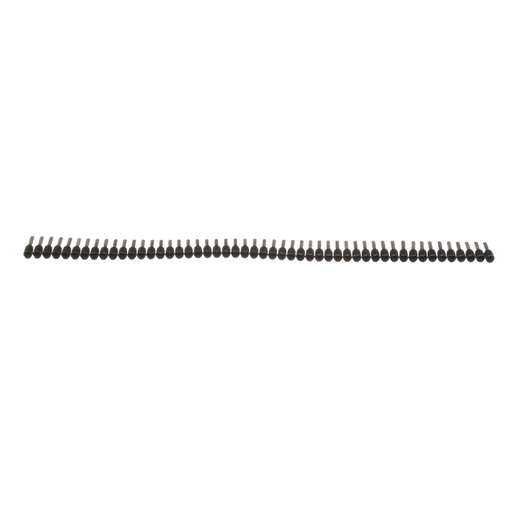

Product image for Panduit FSD78-8-DSL0 Covered Single Wire Ferrule on Strip
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Panduit FSD78-8-DSL0 Covered Single Wire Ferrule on Strip

Manufacturer: PANDUIT | Catalog # FSD78-8-DSL0 | Codale Part # 3261215
$209.53/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
Panduit FSD78-8-DSL0 Covered Single Wire Ferrule

Technical Information

Color Coding
NA
Conductor Size
16 AWG
Contact Material
Copper
Material
Copper
Max Operating Temperature
105 degrees C
Min Operating Temperature
-54 degrees C
Standard
IEC 60947; EN 60947; UL Listed; CSA Certified; DIN VDE 0600
Strip Length
8 mm
Temperature Rating
221 degrees F
Type
Covered Single Wire Ferrule
Wire Size
16 AWG

Packaging

Pkg Qty
500

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983009923
Color
Black
Finish
Tin Plated
Product UPC
07498300992
Weight
0.0001 lb

Dimensions

Outer Diameter
0.08 in
Overall Length
0.57 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Germany
Standards and Certifications
  • Standards Met: DIN 46228, CSA C22.2 No. 291-14, UL 486F
