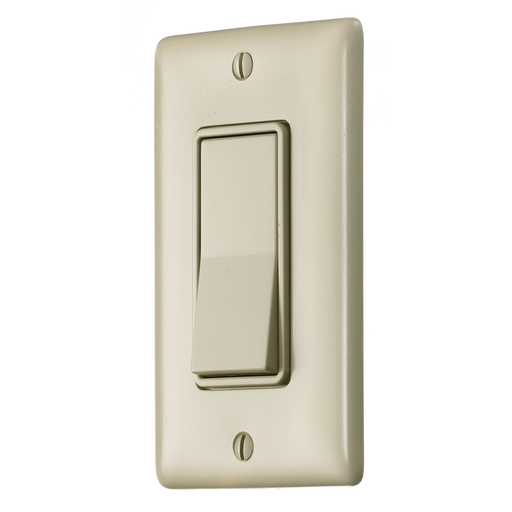

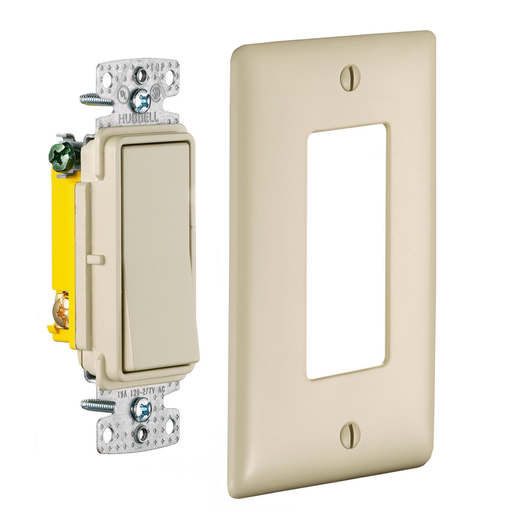

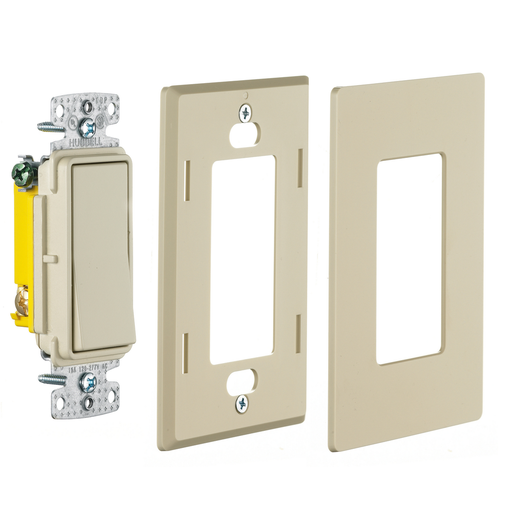

Hubbell RSD115I 15A Single Pole Decorator Rocker Switch, 120-277V - Ivory

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # RSD115I | Codale Part # 3262499
$2.57/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
TradeSelect, Switches and Lighting Controls, Decorator Switch, Residential Grade, Rocker Switch, General Purpose AC, Single Pole, 15A 120/277V AC Push Back and Side Wired

Technical Information

Action
Positive Snap
Actuator
Rocker
Amperage
15 Amp
Applications
Residential Wiring Devices
Contact Configuration
2 Position
Contact Rating
Per UL 20
Enclosure
None
Indicator
None
Material
Composite
Number of Poles
1 Pole
Number of Positions
2
Operating Cycles
30000
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Power Rating
4155 W
Size
Standard Sized
Standard
CSA,UL Standard 20
Tc Connection
Push Wire, Back and Side Wire
Temperature Rating
-20 degrees C Minimum without Impact, 60 degrees C Maximum Continuous
Terminal Type
Screw
Type
General Purpose, Standard
Voltage
277 Volt
Wattage
4155 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
883778101120
Color
Ivory
Environmental Conditions
Indoor Dry unless protected by additional means
Product UPC
88377810112
Weight
0.1300 lb

Dimensions

Height
1.4 Inch
Length
4.1 Inch
Width
4.300 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth, quiet rocker
  • Self-grounding feature is standard
  • Ultrasonically welded cover and base
