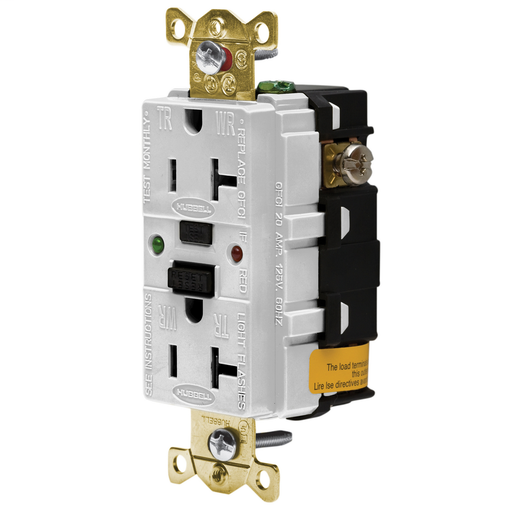

Hubbell GFR5362SGW 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R White GFCI Receptacle with LED Indicator

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # GFR5362SGW | Codale Part # 3262585
$127.61/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Power Protection Products, Receptacles, GFCI, Tamper and Weather Resistant, Industrial Grade, Self Test, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
20 Amp
Frequency
60 Hz
Grade
Industrial
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-30 To 150 degrees F
Size
Standard
Standard
UL
Style
Standard
Tc Connection
Back and Side Wired Terminal Screws
Type
Straight Blade, Decorator, Self-Test, Extra Heavy Duty
Voltage
125 Volt
Wattage
2000 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade GFCI Receptacles

General Product Info

12-Digit UPC
783585440965
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358544096
Weight
0.4 lb

Dimensions

Height
4.6 Inch
Length
4-1/4 Inch
Width
2.200 in

Certifications and Compliance

Country of Origin
USA
Features
  • 10kA Short Circuit Current Rating
  • Self Test Feature, Self Grounding
  • Limits improper access to energized contacts
  • Power indication
  • Ground fault indicator
  • No power at face if reverse wired
Industry Standard(s)
  • Fed.Spec
  • Meets All NEC® Requirements
