Hubbell 5252A-I Ivory 15A 125V Duplex Receptacle. Heavy Duty Industrial Series

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 5252AI | Codale Part # 3262718
$4.38/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory

Technical Information

Amperage
15 Amp
Applications
Hubbell-Pro Heavy Duty
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Enclosure Material
Stainless Steel
Face Material
Nylon
Grade
Industrial
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw, Built-in Installation
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL File No. E2186
Style
Smooth Face
Tc Connection
Back and Side Wired
Temperature Rating
Maximum continuous 75?degrees C; minimum -40?degrees C (w/o impact)
Type
Smooth Face, Standard
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG
Wire Type
Grounding

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell Pro™

General Product Info

12-Digit UPC
783585109718
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Hubbell-PRO
Product UPC
78358510971
Weight
0.15 lb

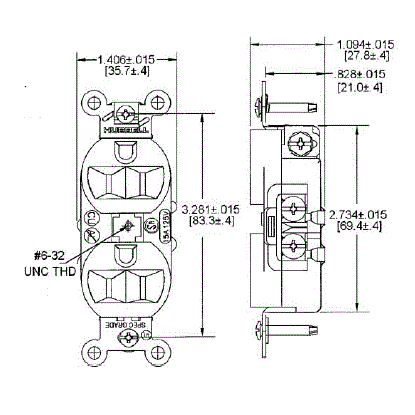

Dimensions

Height
1.1 Inch
Length
3.28 Inch
Width
1.41 in

Certifications and Compliance

Country of Origin
China
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498
Industry Standard(s)
  • Certified to CSA 22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL File No. E2186
Features
  • Slender/compact design
  • Smooth face
  • Triple wipe contacts
