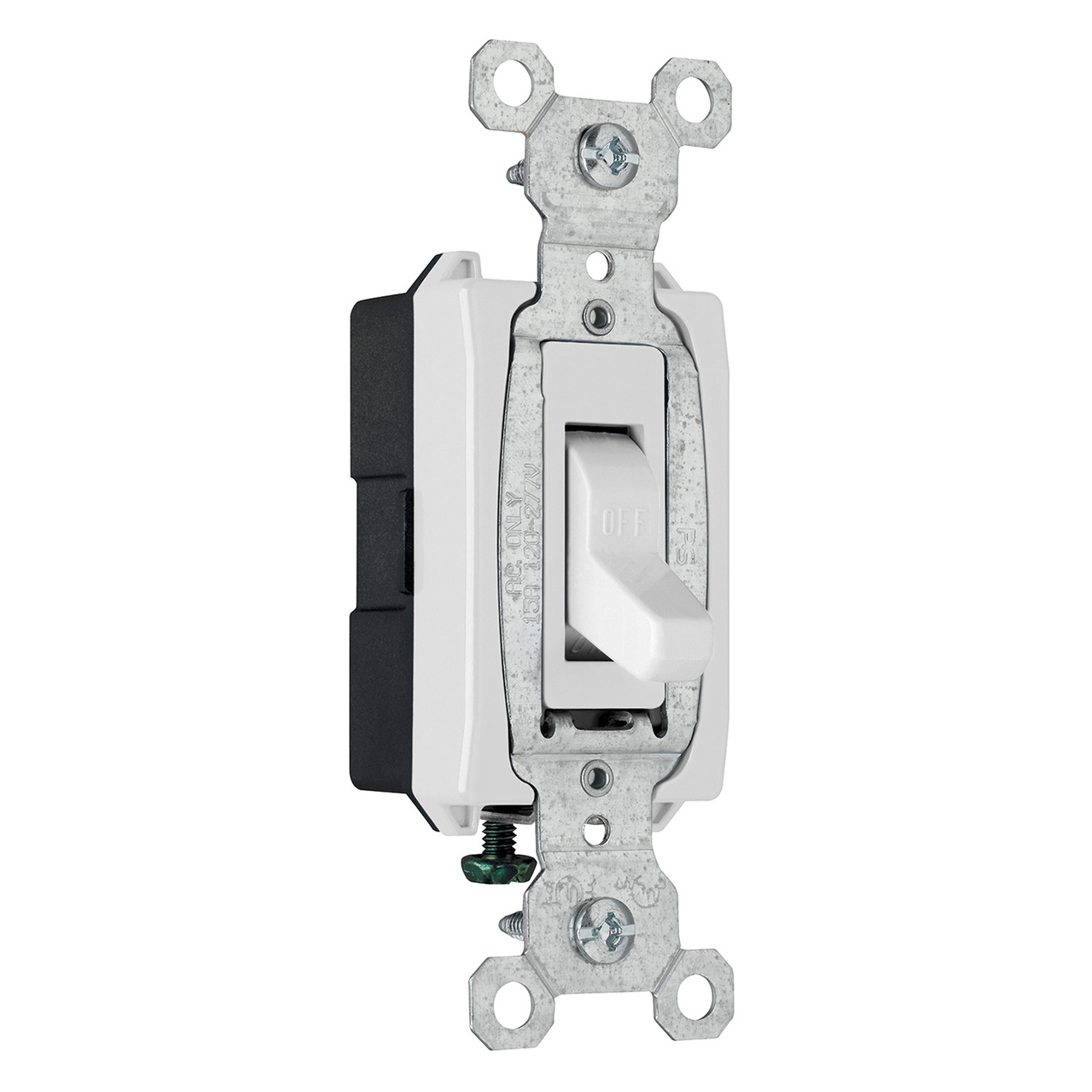

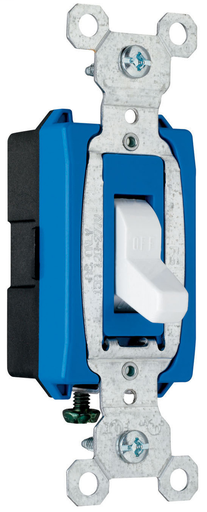

Product image for Pass & Seymour CS15AC1-W 15 Amp 120/277 VAC 1-Pole White Glass Reinforced Nylon Screw Mounting Toggle Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Pass & Seymour CS15AC1-W 15 Amp 120/277 VAC 1-Pole White Glass Reinforced Nylon Screw Mounting Toggle Switch

Manufacturer: Legrand Pass & Seymour | Catalog # CS15AC1W | Codale Part # 3263492
$7.18/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Commercial 1-Pole Switch, Side-Wire, 15A 120/277V.

Technical Information

Action
Off
Actuator
Toggle, Rocker/Button
Amperage
15 Amp
Applications
Commercial
Contact Rating
120 V
Duty Rating
Heavy Duty
Enclosure
Nylon
Grade
Commercial
Material
Thermoplastic
Number of Poles
1 Pole
Size
3.3 in
Type
Heavy Duty
Voltage
120 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007126433
Color
White
Finish
Matte
Product UPC
78500712643
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Heavy-duty toggle bumpers for smooth and quiet operation.
  • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
  • Oversized silver alloy contacts for longer dependable switch life.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
