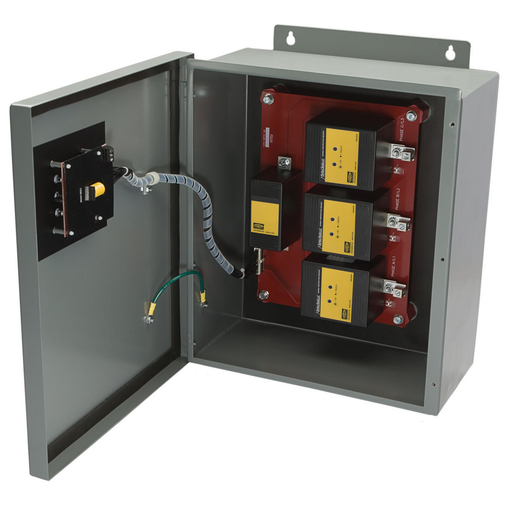

Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL4P160A SPD PANEL, 120KA, 3PH 120/208V, A VERSION

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL4P160A | Codale Part # 3264002
$4,670.30/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surge Protective Devices, SPIKESHIELDPanel Style, 120KA, 3-Phase120/208V AC

Technical Information

Applications
Commercial,Industrial,Institutional,Residential
Frequency
50 Hz
Material
Steel
Mounting Type
Surface
Operating Temperature
-40 Degrees F to 149 Degrees F (-40 C to 65 C)
Response Time
5n s
Size
12 in
Tc Connection
Wire Lugs
Type
Service and Branch Panel Protection
Voltage
120/208 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
SpikeShield

General Product Info

12-Digit UPC
783585407173
Class
C
Color
Gray
Product UPC
78358540717
Weight
22.2500 lb

Dimensions

Width
15.600 in

Certifications and Compliance

Country of Origin
USA
Features
  • Thermal Fuse Prevents the MOV's from Overheating When Exposed to High Current Levels
  • Allows Installation in Areas with Space Restrictions, Minimizes Connecting Lead Length Which Reduces Impedance Ensuring Improved Clamping Performance
  • Protects Equipment Under the Worst Electrical Conditions
  • Assures Positive Connection and Allows for Easy Replacement
  • Prevents Excessive Panel Damage Caused by Internal Short Circuits or Component Failure
  • Provides Visual and Audible Indication of Panel Status, Green for Operational, Red for Module Failure, Audible Alarm for Module Failure with Silencing
  • Provides Uniform Clamping Throughout the Sine Wave
Additional Information
  • Includes Red/Green LED, Diagnostic Test Switch, Dry Contact, Audible Alarm, Surge Counter
