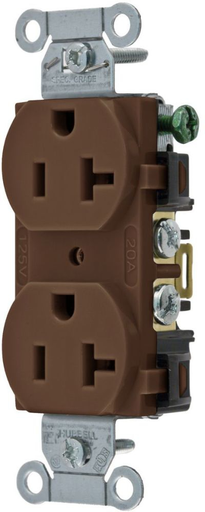

Product image for Hubbell 5352AB 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Brown Straight Blade Duplex Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell 5352AB 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Brown Straight Blade Duplex Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 5352AB | Codale Part # 3264217
$4.15/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown

Technical Information

Amperage
20 Amp
Applications
Hubbell-Pro Heavy Duty Applications
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Compact,Heavy Duty Specification,Slender
Grounding
Self
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL File No. E2186
Style
Smooth Face
Tc Connection
Back and Side Wired
Temperature Rating
Maximum continuous 75?degrees C; minimum -40?degrees C (w/o impact)
Type
Traditional, Flat
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 V

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585109756
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Hubbell-PRO
Product UPC
78358510975
Weight
0.15 lb

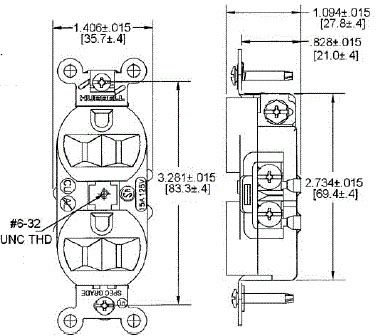

Dimensions

Height
1.09 Inch
Length
3.28 Inch
Width
1.41 in

Certifications and Compliance

Country of Origin
China
Features
  • Easy Installation, Easy Access Split Circuit Tab, Fork Terminal Capable, Self-Grounding Staple
  • Durable Construction, Nylon Face and Base
  • Sturdy Construction, Wrap Around Galvanized Steel Strap
  • Single Tab Break-Off Ears
  • Self-Grounding Staple
  • Easy Access Split Circuit Tab
  • Fork Terminal Capable
  • Oversized Terminal Screw
  • Permanently Marked Receptacles for Automatic Outlet Control System
  • These Receptacles are Embossed with the Universally Recognized Power Symbol and the Word \"Controlled\" Remains Clearly Visible after Installation
Additional Information
  • Power Rating 1 HP
  • Material Brass (Contact), Galvanized Steel (Strap)
  • Temperature Rating -40 to 75 Deg C
  • Flammability Rating UL 94 V-2
  • Applicable Standard Federal Specification WC-596, NEMA WD-6
