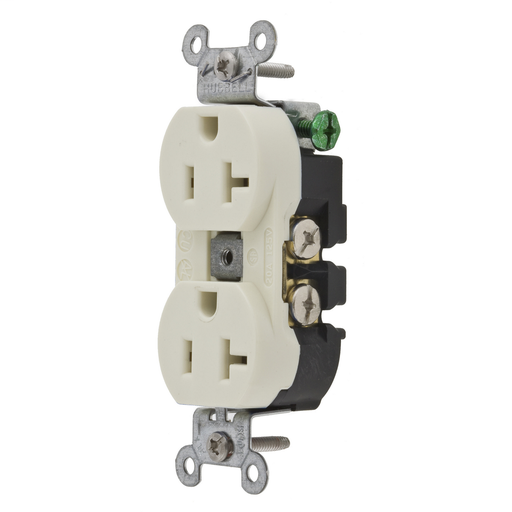

Hubbell 5352AAL Receptacle, DUP SB, HUBPRO, 20A 125V, SF, AL

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 5352AAL | Codale Part # 3265223
$4.93/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Almond, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Face Material
Nylon
Grade
Industrial
Grounding
Self
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL File No. E2186
Style
Smooth Face
Tc Connection
Back and Side Wired
Type
Traditional, Heavy Duty
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585109794
Color
Almond
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Smooth
Product UPC
78358510979
Weight
0.15 lb

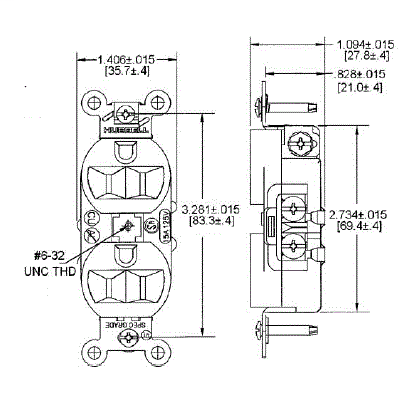

Dimensions

Height
1.09 Inch
Length
3.28 Inch
Width
1.41 in

Certifications and Compliance

Country of Origin
USA
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498
Industry Standard(s)
  • Certified to CSA 22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL File No. E2186
Features
  • Slender/compact design
  • Self Grounding
  • Smooth face
  • Triple wipe contacts
