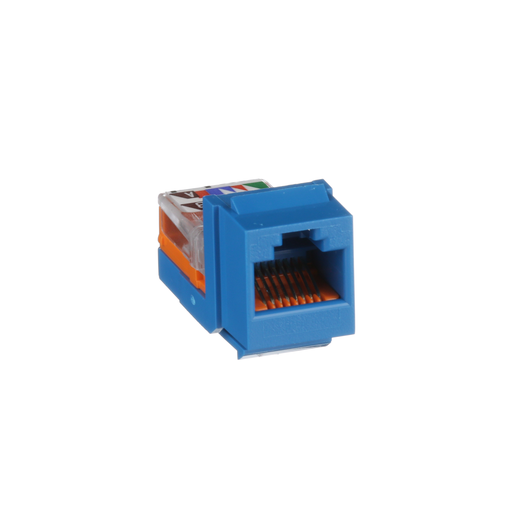

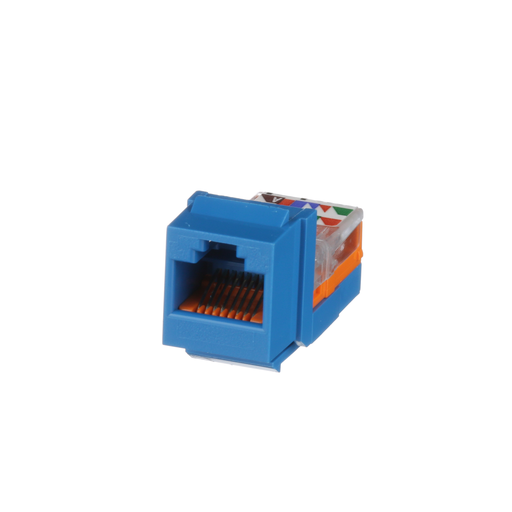

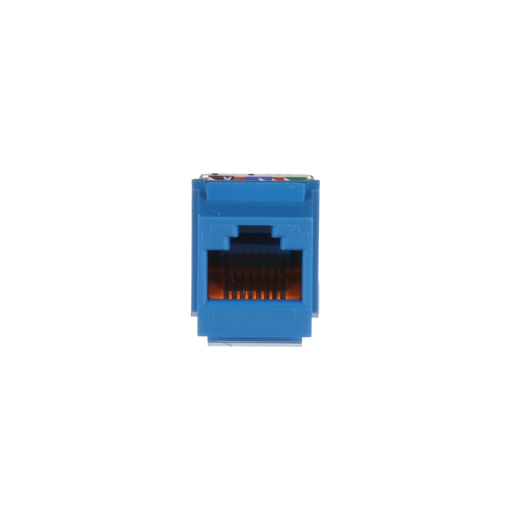

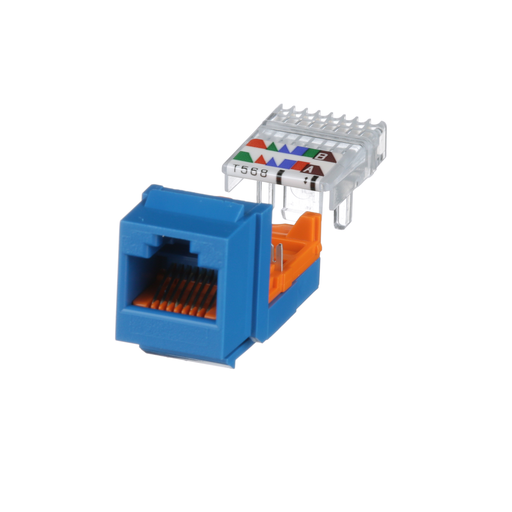

Product image for Panduit NK5E88MBUY UTP RJ45 Cat 5e Leadframe Keystone Jack Module
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Panduit NK5E88MBUY UTP RJ45 Cat 5e Leadframe Keystone Jack Module

Manufacturer: PANDUIT | Catalog # NK5E88MBUY | Codale Part # 3265255
$14.39/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The NetKey® Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with keystone interfaces including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. This jack module is blue.

Technical Information

Applications
Unshielded
Cable Size
24 - 22 AWG
Cable Type
Category 5E
Max Operating Temperature
149 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 5e
Type
RJ45, Lead frame, Unshielded

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983054985
Color
Blue
Product UPC
07498305498
Used With
Round, Flat and Solid Core Copper Cables

Dimensions

Depth
1.37 Inch
Height
22.2 mm
Overall Length
34.8 mm
Width
16.4 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China
Standards and Certifications
  • Standards Met: Meets all TIA/EIA-568-C.2 Category 5e and ISO 11801 Channel Performance, 2nd Edition Class D Channel Requirements at Swept Frequencies up to 100 MHz. Meets ANSI/TIA-968-A, Meets IEC 60603-7, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, UL 1863, and RoHS Compliant
