Panduit H2X4LG6 Slotted Hinged Duct,PVC,2"X4"X6',Light Gray

Manufacturer: PANDUIT | Catalog # H2X4LG6 | Codale Part # 3266036
$69.79/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

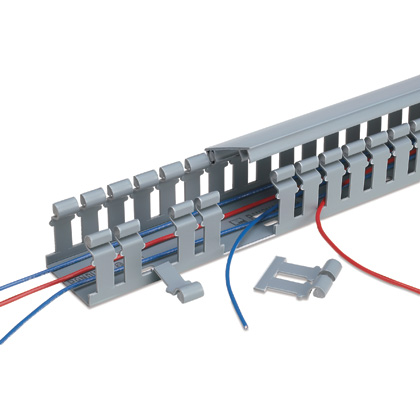

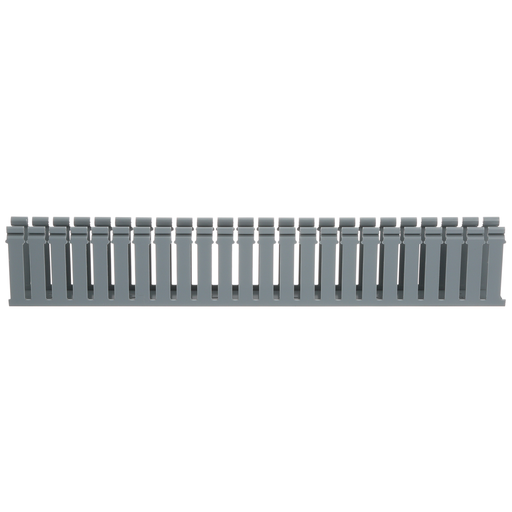

The H2X4LG6 PVC Hinged-Cover Wide Slot Wiring Duct features a hinged cover and wide finger/slot design that provides greater rigidity and allows for use with a range of wire/bundle sizes. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with UL recognized continuous-use temperature up to 122.F (50.C). Mounting holes provided. Lead-Free PVC. 4.1" x 2.17" (104.1 mm x 55.1 mm) and 6' (1.83 m) long. Cover sold separately. Light Gray. 6 per package.

Technical Information

Applications
Hinged Cover Wide Slot Wiring Duct
Material
PVC
Mounting Type
Mounting Holes
Size
55.1 x 104.1 mm
Tc Connection
Standard Mounting Holes
Type
Base Wiring Duct

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Panduct®

General Product Info

12-Digit UPC
074983582396
Color
Light Gray
Product UPC
07498358239
Weight
3.530 lb

Dimensions

Height
4.1 Inch
Length
6 Foot
Overall Length
6 ft
Thickness
0.1 IN
Width
2.17 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: UL 94 V-0 Recognized; CSA Certified; CE Compliant; RoHS Compliant
