Hubbell HBL26CM11 30A 125V Twist-Lock INSULGRIP Yellow Nylon Plug - Corrosion Resistant

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL26CM11 | Codale Part # 3266567
$114.46/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Marine Grade, Male Insulgrip® Plug, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-30P, Screw Terminal, Corrosion resistant, Yellow Nylon.

Technical Information

Amperage
30 Amp
Applications
Extra Heavy Duty Industrial/Marine
Conductor Size
16-8 AWG
Cord Size
0.36 - 0.93 in
Cord Type
Portable
Current
30 Amp
Dielectric Strength
2000 V
Grade
Marine
Grounding
Yes
Horsepower
2 hp
Material
Nylon
Mounting Type
Cord

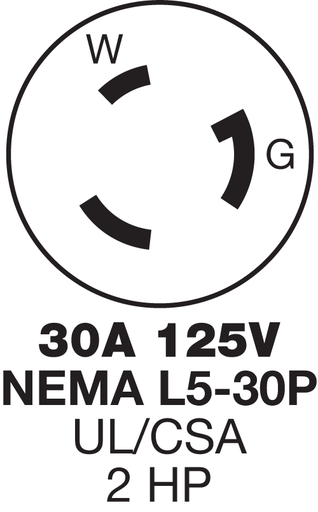

NEMA
L5-30P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size

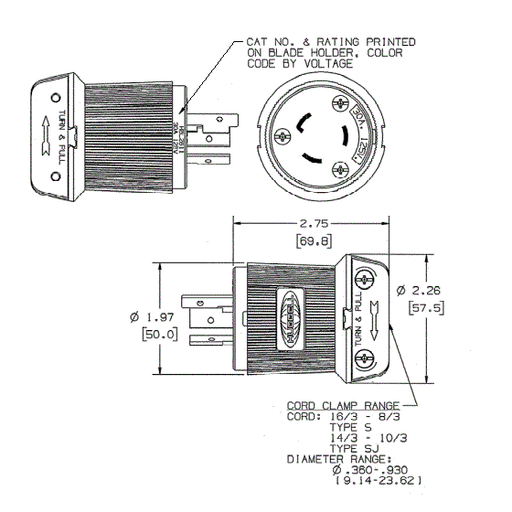

2.26 in x 2.26 in x 2.75 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard Sized
Voltage
125 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585039084
Color
Yellow
Environmental Conditions
Corrosion-Resistant
Product UPC
78358503908
Weight
0.30 lb

Dimensions

Height
2-3/4 Inch
Length
2.26 Inch
Width
2.26 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Corrosion Resistant
