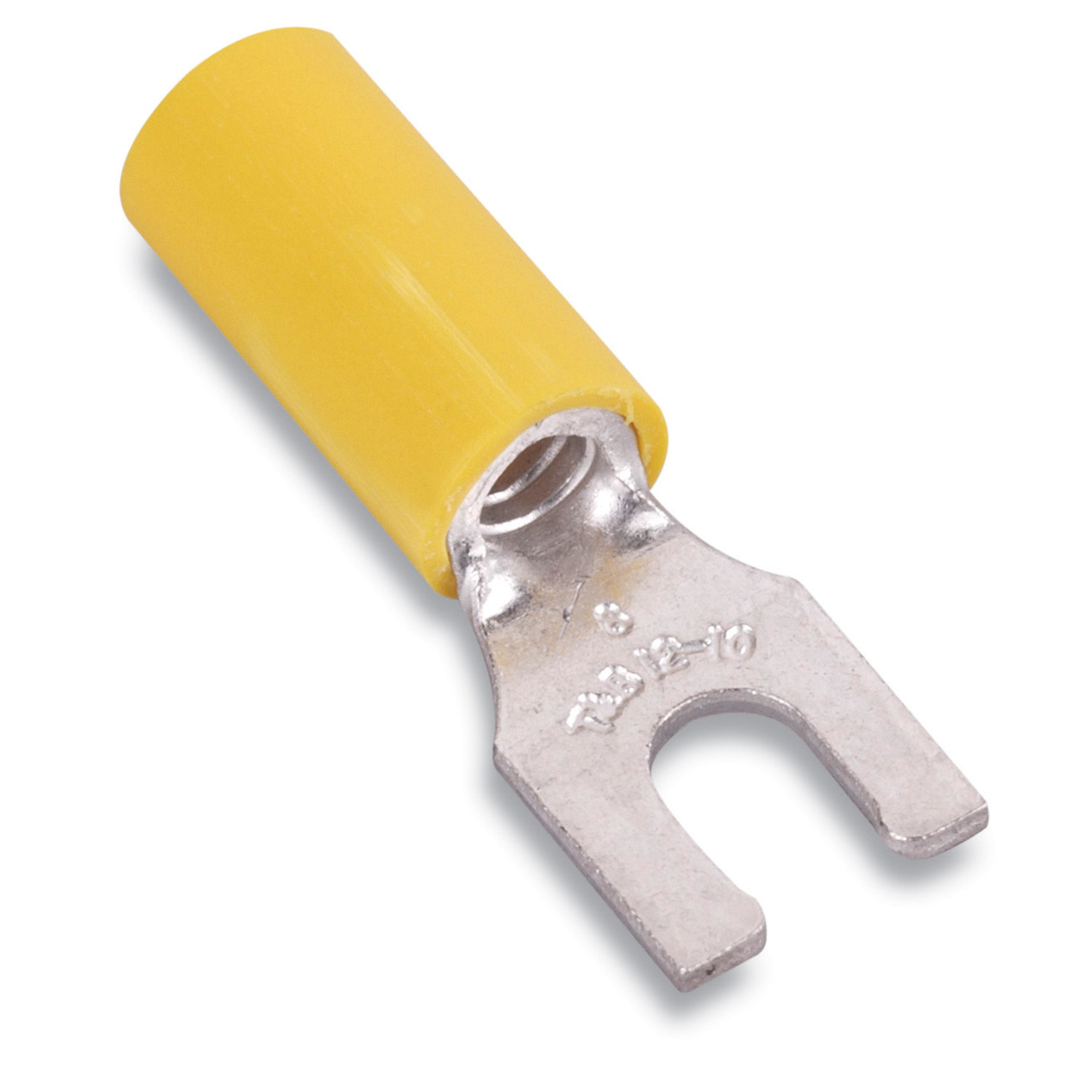

Product image for Thomas & Betts RC2223 Nylon-Insulated Locking Fork Terminal - #12-10, #10bolt (500/Pkg)
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Thomas & Betts RC2223 Nylon-Insulated Locking Fork Terminal - #12-10, #10bolt (500/Pkg)

Manufacturer: ABB Thomas & Betts | Catalog # RC2223 | Codale Part # 3266900
$100.99/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Nylon Insulated Locking Fork Terminal, Length 1.00 Inches, Width .37 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack

Technical Information

Barrel Type
Brazed Seam, Serrated
Conductor Size
12-10 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Temperature Rating
105 degrees C
Type
Insulated, Locking, Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210887685
Color
Yellow
Finish
Electro Tin Plated
Product UPC
78621088768
Weight
0.0044 lb
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
