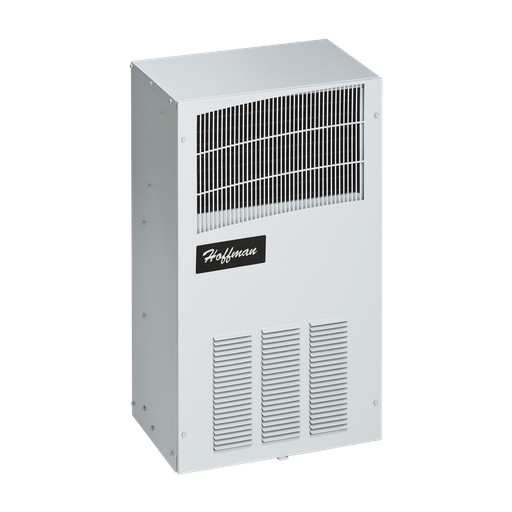

Product image for Hoffman T290416G100 T-SERIES Mid-Size Outdoor, Side Mtg 115v 50/60Hz, Type 4
Image thumbnail 0
Image thumbnail 1
Email

Hoffman T290416G100 T-SERIES Mid-Size Outdoor, Side Mtg 115v 50/60Hz, Type 4

Manufacturer: nVent Hoffman | Catalog # T290416G100 | Codale Part # 3266925
$11,231.78/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
T-Series Mid-Size Air Conditioners keep equipment cool at a range of heat loads. Their discreet design helps them to blend into blend into rugged factory or outdoor environments. Each unit is equipped with corrosion-resistant components, compressor heaters and head pressure controls for optimal outdoor performance.

Technical Information

Amperage
13.8/13.6 Amp
Applications
Controls and Drives; Power Distribution
BTU Hour
4000 BTU
Color Coding
RAL 7035
Frequency
50/60 Hz
Material
Steel
Max Current
12.8 A
Max Power Current
1172 W
Max Temperature
131 degrees F
Min Temperature
-40 degrees F
Number of Phases
1 Phase
Operating Temperature
131 degrees F
Standard
3R Or 4 Rated Enclosure.,3R Or 4 Rating When Properly Installed On A UL/cUL Type 12,CE,File No. SA6453,Maintain UL/cUL Type 12,UL/cUL Listed
Type
Air Conditioners
Voltage
115
Wattage
1172 Watt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
T-Series

General Product Info

12-Digit UPC
783510162962
Color
Lt Gray
Finish
Powder Coated
Housing Material
Mild Steel
Product UPC
78351016296
Weight
99 lb

Dimensions

Depth
11.3 Inch
Height
29 Inch
Length
19 Inch
Thickness
1.21 mm
Width
15.75 in
DISK UNSPSC
40101701
Features
  • Compact footprint to minimize real estate and maximize capacity
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • R134A or R-407C refrigerant
  • Models for 115, 230 and 460 VAC power input
  • Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
  • Reliable mechanical thermostat on enclosure side of the unit
  • Dual condenser-side air movers for performance redundancy
  • Painted galvanized sheet-metal or stainless steel cover for rugged factory and outdoor environments
  • Easy-mount flanges for simple installation
  • Every unit functionally tested before shipping
  • Exterior and fully recessed mounting options on many models
  • Standard Outdoor Air Conditioner models include: telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
  • Mounting hardware, gaskets and user manual furnished with the unit
