Thomas & Betts RB1163 1/4 Inch 18 AWG to 14 AWG Stud Blue Insulated Nylon Fork Terminal

Manufacturer: ABB Thomas & Betts | Catalog # RB1163 | Codale Part # 3267960
$248.95/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

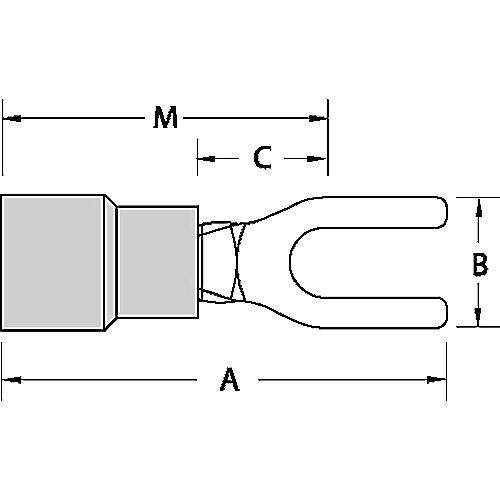

Nylon Insulated Fork Terminal, Length .95 Inches, Width .44 Inches, Maximum Insulation .190, Bolt Hole 1/4 Inch, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam, Serrated
Conductor Size
18-14 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
1/4 in
Temperature Rating
105 degrees C
Type
Insulated, Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210865485
Color
Blue
Finish
Electro Tin Plated
Product UPC
78621086548
Weight
0.0006 lb
Features
  • Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
